M6420204
Technofeet Kit 2

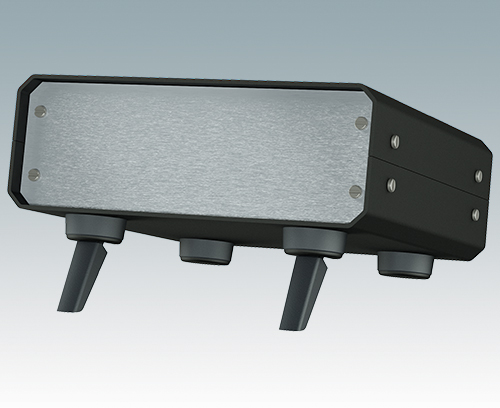

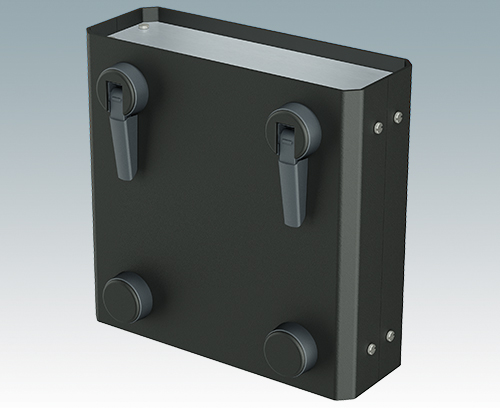

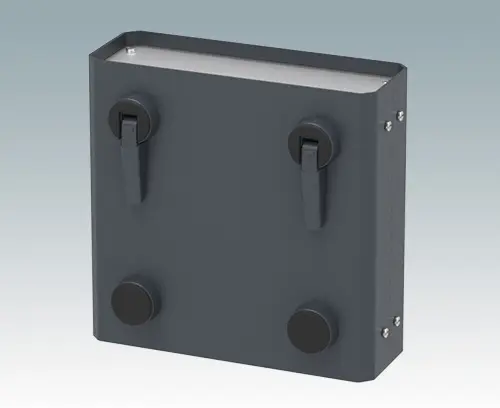

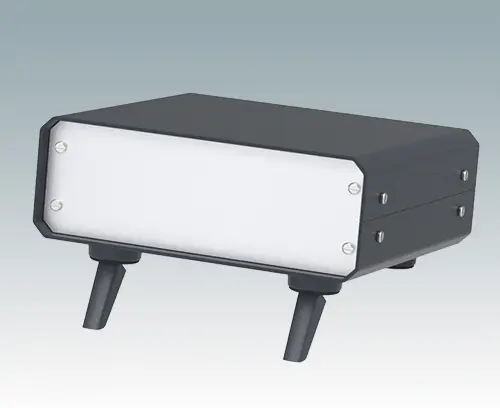

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.
Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)
Call us for a free sample.
With tilt legs
Supply
Foot moulding (x4), tilt leg (x2), black TPE non-slip insert (x4), self-tapping screw (x4).
Generate Your PDF Datasheet for M6420204
Please select the product details you would like to include in the PDF.
Black RAL 9005
RoHS compliant
Catalog Pages
- Enclosure feet catalog (English) 2,514 KB
- Tilt feet load tests report (TÜV SÜD) 809 KB
- Catálogo Pies De Caja (Español) 2,589 KB
Drawings
- PDF-File 209 KB
- AutoCAD DWG-File 603 KB
3D Models
- M6420204.x_t 1,420 KB
- M6420204.sat 3,761 KB
- M6420204.stp 1,739 KB
(METCASE product)
