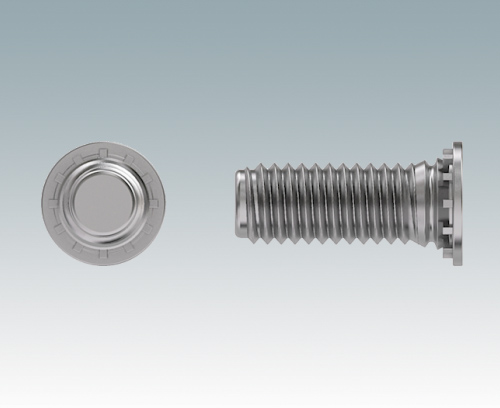

Flush Head Fixing Studs

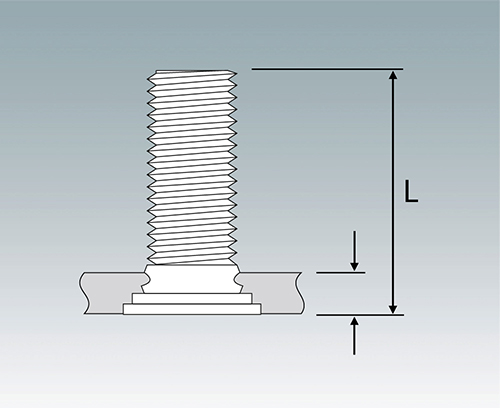

Flush mounted fixing stud which is press fitted to a hole in the panel.
| Thread Size | Lengths (inches) | Mounting Hole (inches) |
| M2 | 0.236 | 0.314 | 0.393 | 0.472 | 0.629 | 0.708 | 0.787 | Ø.078 |
| M2.5 | 0.236 | 0.314 | 0.393 | 0.472 | 0.590 | 0.708 | 0.787 | Ø.098 |
| M3 | 0.196 | 0.236 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.98 | 1.181, 1.377 | Ø.118 |
| M3.5 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | Ø.137 |
| M4 | 0.236 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | 1.102 | 1.181 | 1.377 | 1.496 | 1.771 | 1.968 | Ø.157 |
| M5 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | 1.102 | 1.181 | 1.377 | 1.496 | 1.968 | Ø.196 |
| M6 | 0.314 | 0.393 | 0.472 | 0.590 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | 1.102 | 1.181 | 1.377 | 1.496 | 1.771 | 1.968 | Ø.236 |
Generate Your PDF Datasheet for M0000700
Please select the product details you would like to include in the PDF.
RoHS compliant
