19" Enclosures
M0000702

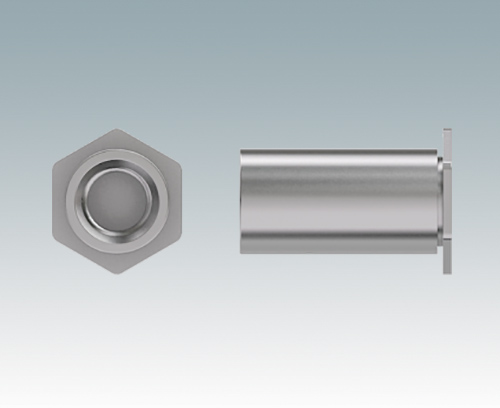

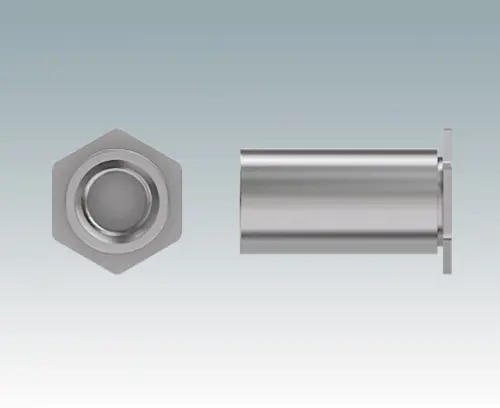

Blind Standoffs
Blind fixing standoff which is press fitted to a hole in the panel.

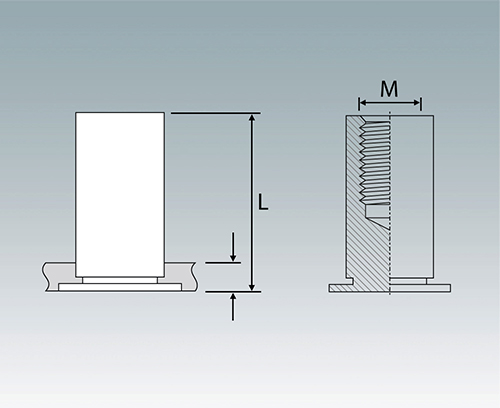

| Thread Size | Lengths (inches) | Mounting Hole (inches) |
| M2 | 0.393 | Ø.165 |
| M2.5 | 0.236 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | Ø.165 |
| M3 | 0.196 | 0.236 | 0.275 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | Ø.165 |
| M4 | 0.236 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | Ø.283 |
| M5 | 0.236 | 0.314 | 0.393 | 0.472 | 0.551 | 0.629 | 0.708 | 0.787 | 0.866 | 0.984 | Ø.283 |
Generate Your PDF Datasheet for M0000702
Please select the product details you would like to include in the PDF.
RoHS compliant
Catalog Pages
- Custom enclosures catalog 4,042 KB
View our customizing options and don't forget to request a quotation!
