PCB Clip-on Standoffs

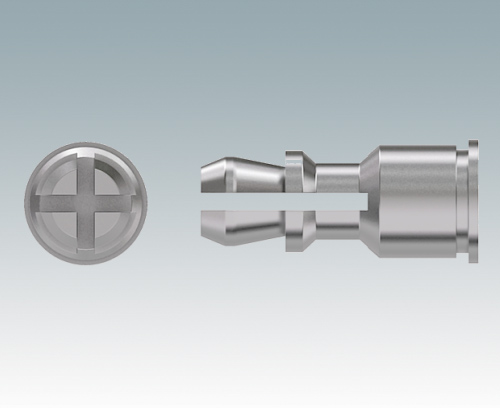

PCB fixing standoff which is press fitted to a hole in the panel. The PCB clips onto the standoff.

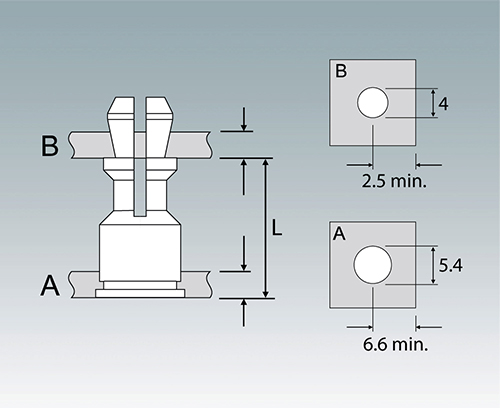

| Hole B in PCB (inches) | Lengths (inches) | Mounting Hole A (inches) |
| Ø0.157 | 0.314 | Ø0.212 |
| Ø0.157 | 0.393 | Ø0.212 |
| Ø0.157 | 0.472 | Ø0.212 |
| Ø0.157 | 0.551 | Ø0.212 |
| Ø0.157 | 0.629 | Ø0.212 |
| Ø0.157 | 0.708 | Ø0.212 |
| Ø0.157 | 0.787 | Ø0.212 |
| Ø0.157 | 0.866 | Ø0.212 |
| Ø0.157 | 0.984 | Ø0.212 |
Generate Your PDF Datasheet for M0000704
Please select the product details you would like to include in the PDF.
RoHS compliant
