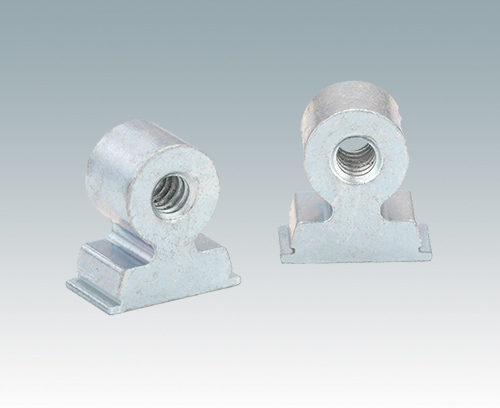

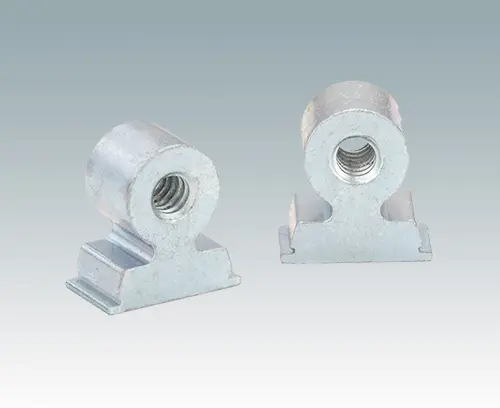

Right Angle Panel Nuts
Threaded right angle fastener which is press fitted into a rectangular hole in the panel.

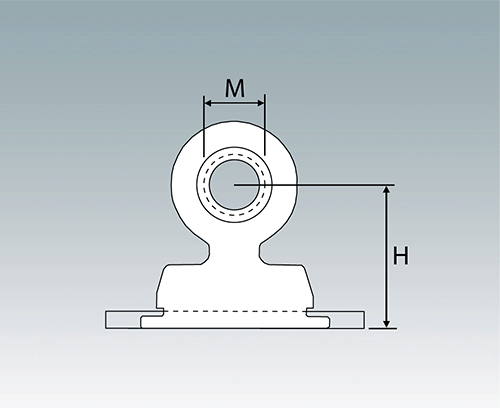

| Thread Size | Width (inches) | Fixing Hole Height (inches) | Mounting Hole (inches) |
| M3 | 0.113 | 0.275 | 0.314 x 0.118 |
| M3 | 0.153 | 0.275 | 0.314 x 0.157 |
| M3 | 0.231 | 0.275 | 0.314 x 0.236 |
| M4 | 0.153 | 0.354 | 0.393 x 0.157 |
| M4 | 0.271 | 0.354 | 0.393 x 0.275 |
| M4 | 0.350 | 0.354 | 0.393 x 0.354 |
Generate Your PDF Datasheet for M0000721
Please select the product details you would like to include in the PDF.
RoHS compliant
