Diecast 5500

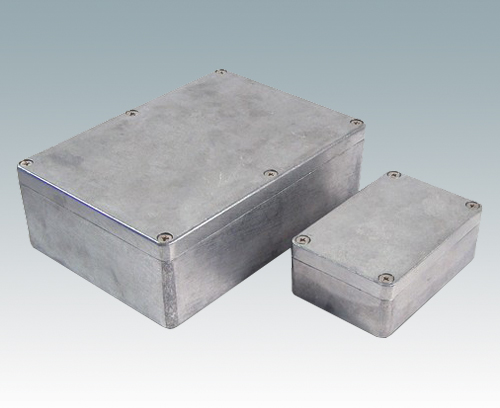

Heavy duty sealed diecast boxes
- Robust diecast enclosures for electronics equipment
- Highly durable and shock resistant design
- Standard IP 65 (NEMA 4) neoprene sealing gasket
- Aluminum alloy ADC-12 (Al-Si-Cu based)
- RFI/EMI shielding properties
- Tongue and groove construction
- Lid fitted with M3 or M4 machine screws
- Screw bosses in base for locating PCBs and electronic assemblies
- Low draught angle provides large internal volume
- Supplied in natural finish, painted to order.

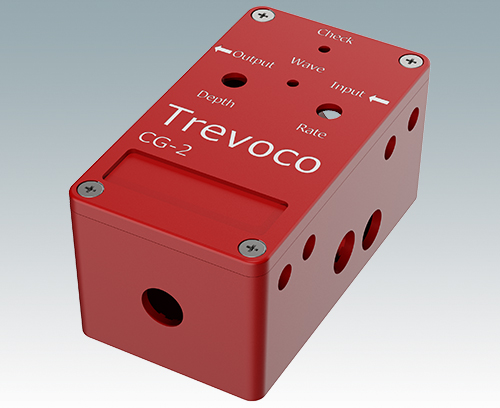

Order your own fully customized version learn more here >>
Application Fields
Indoor or outdoor industrial control equipment, terminal boxes, detectors, cable nodes, RF or wireless equipment, control boxes, instrumentation, test equipment

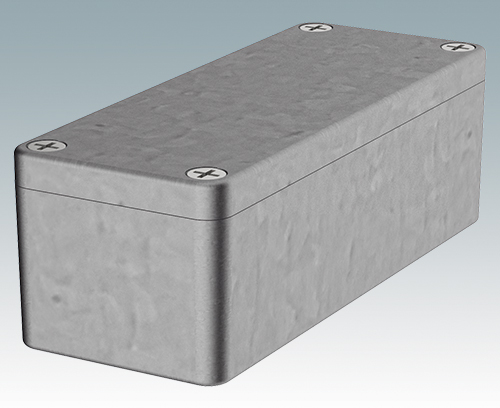

5500-02
Version

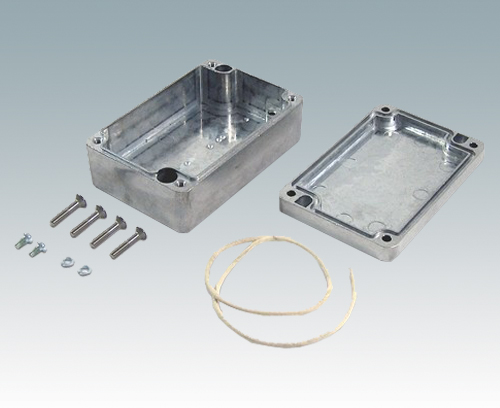

Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-02
Sealed Diecast EnclosureNatural finish
3.54″x1.42″x1.18″

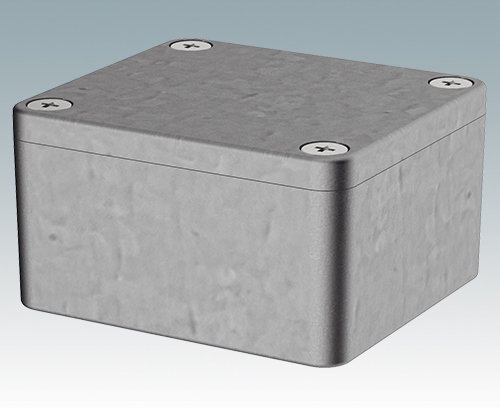

5500-04
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-04
Sealed Diecast EnclosureNatural finish
2.52″x2.28″x1.38″

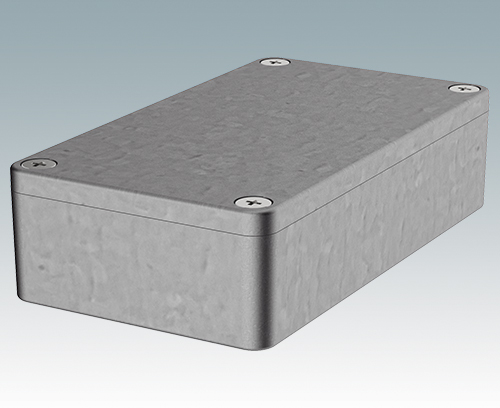

5500-06
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-06
Sealed Diecast EnclosureNatural finish
4.53″x2.56″x1.18″

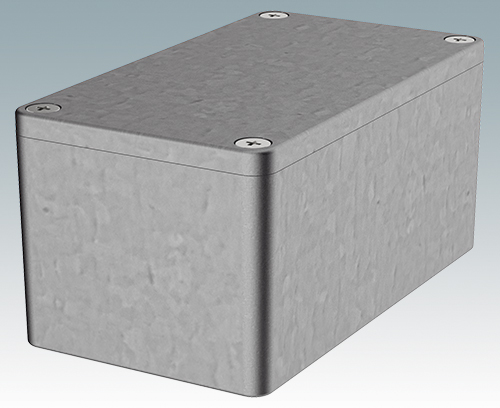

5500-11
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-11
Sealed Diecast EnclosureNatural finish
4.53″x2.56″x2.17″

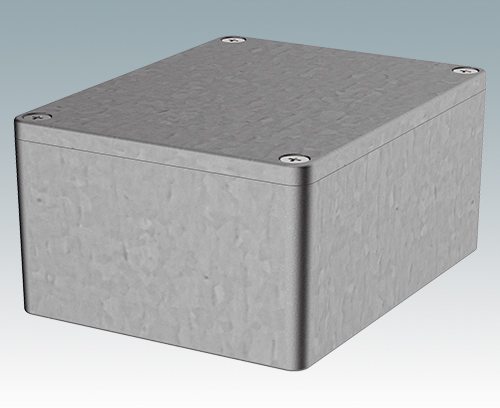

5500-13
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-13
Sealed Diecast EnclosureNatural finish
4.53″x3.54″x2.17″

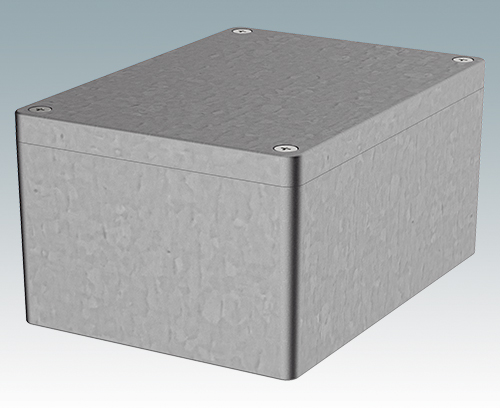

5500-15
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-15
Sealed Diecast EnclosureNatural finish
5.83″x4.25″x2.95″

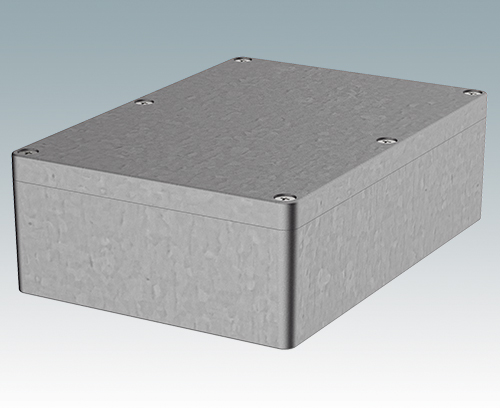

5500-20
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-20
Sealed Diecast EnclosureNatural finish
6.73″x4.76″x2.17″

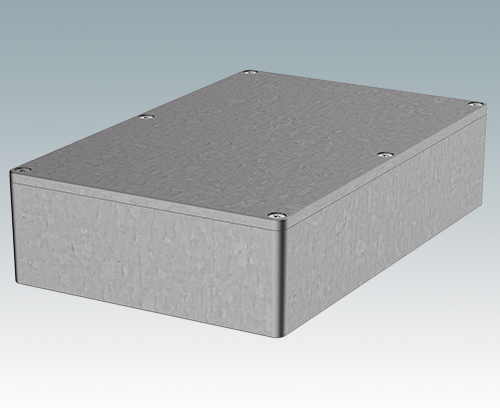

5500-24
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-24
Sealed Diecast EnclosureNatural finish
8.74″x5.75″x2.17″

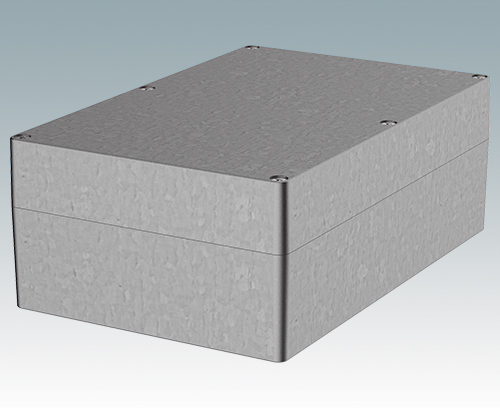

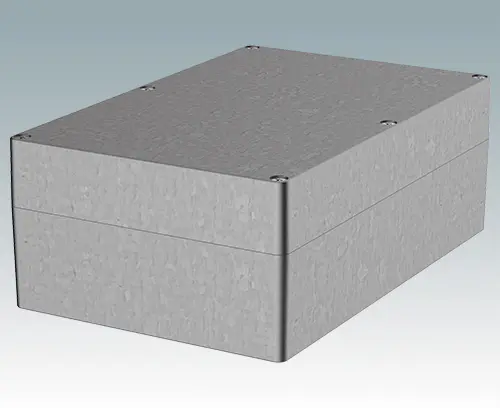

5500-25
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-25
Sealed Diecast EnclosureNatural finish
8.74″x5.71″x3.23″

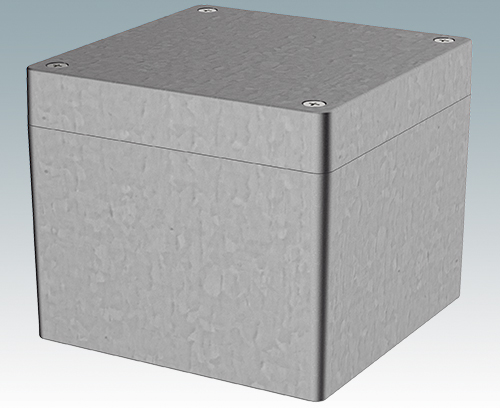

5500-37
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-37
Sealed Diecast EnclosureNatural finish
4.76″x4.76″x3.98″

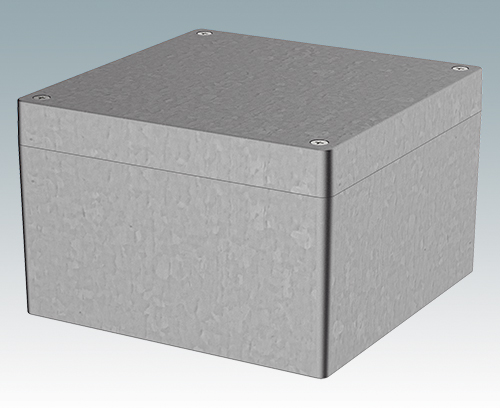

5500-39
Version
Supply Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)
5500-39
Sealed Diecast EnclosureNatural finish
6.26″x6.26″x4.02″
