19" Enclosures
Instrumet 19"

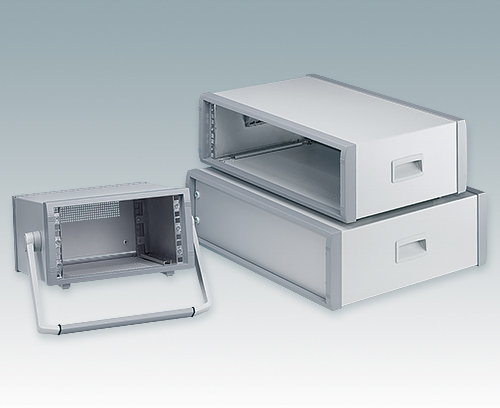

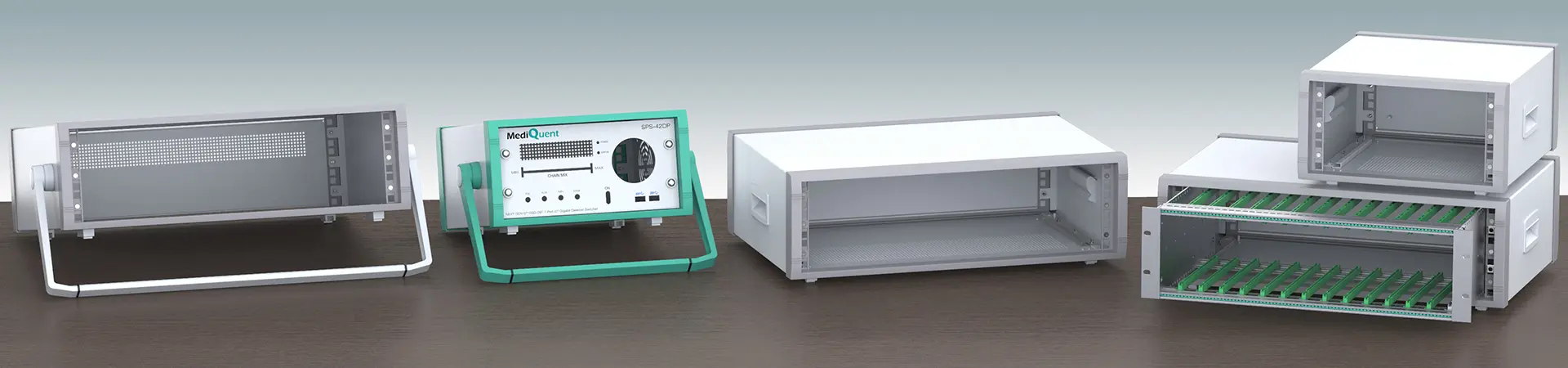

Stylish 3U Instrument Enclosures

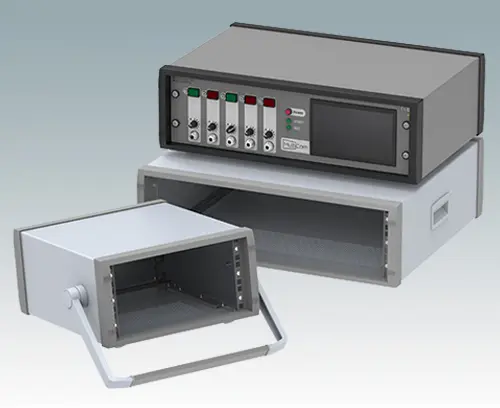

- Modern 10.5" and 19" width rack mount cases, conforms to DIN 41494 & IEC 60297-3

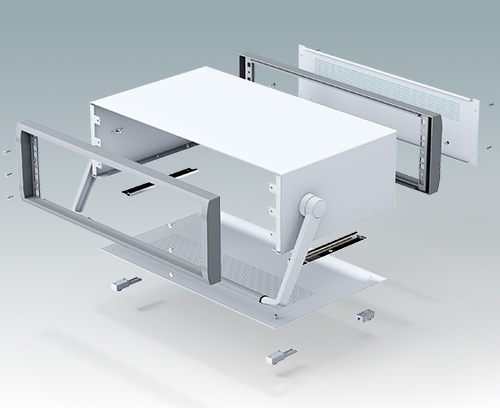

- Robust yet lightweight aluminum construction with die cast front and rear bezels and fabricated case body

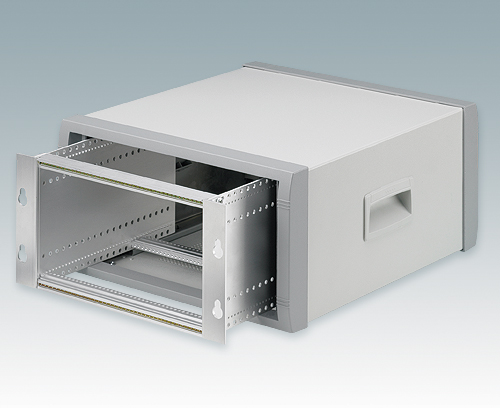

- Designed to accept standard 3U subracks, chassis and front panels

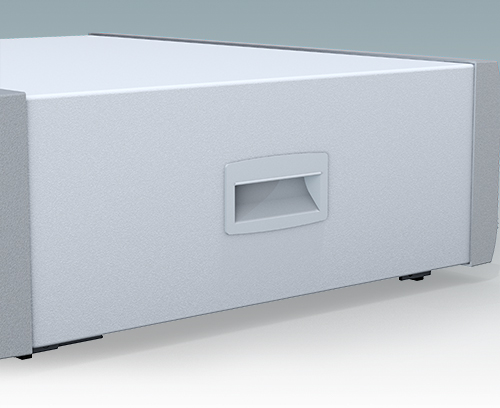

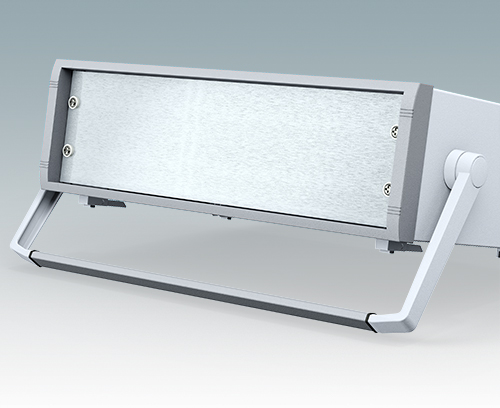

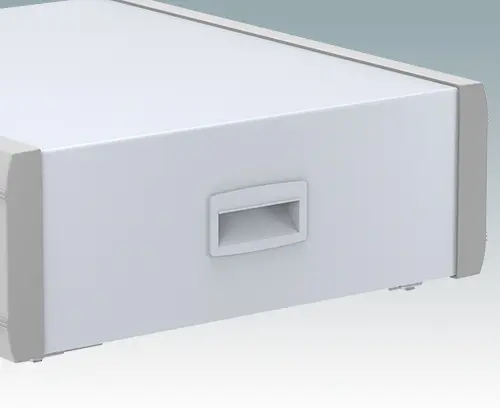

- Supplied with two ABS side handles or a metal carry handle bar/bail arm

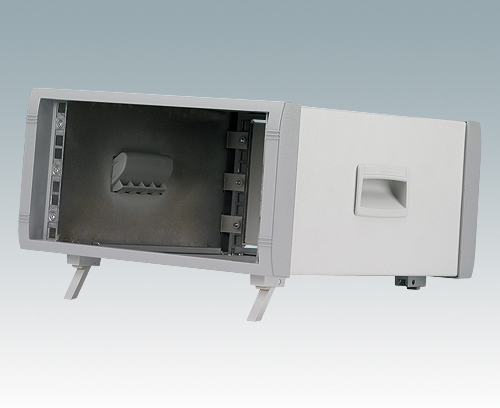

- Supplied fully assembled with four molded ABS non-slip tilt feet

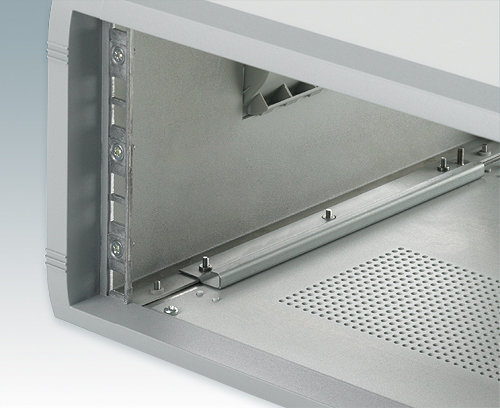

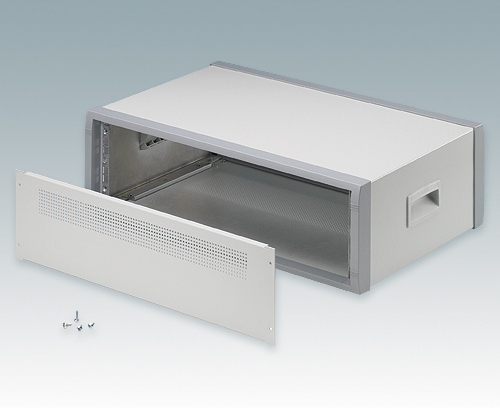

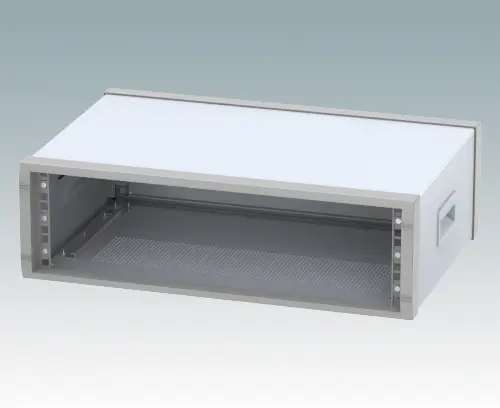

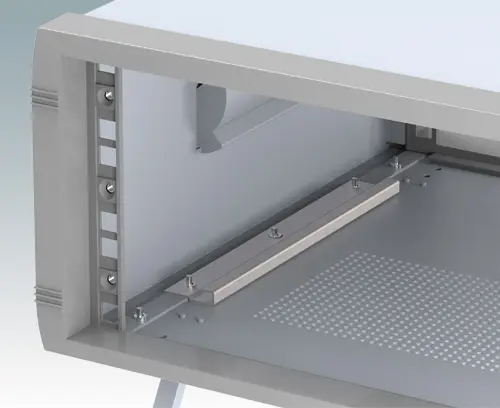

- Internal subrack/chassis support rails and rear panel included

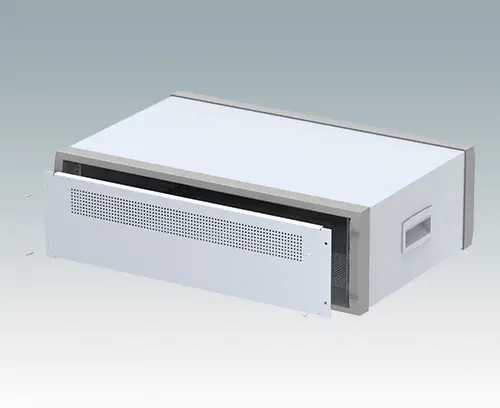

- Ventilation holes in base and rear panel
- Three M4 earth studs provided inside

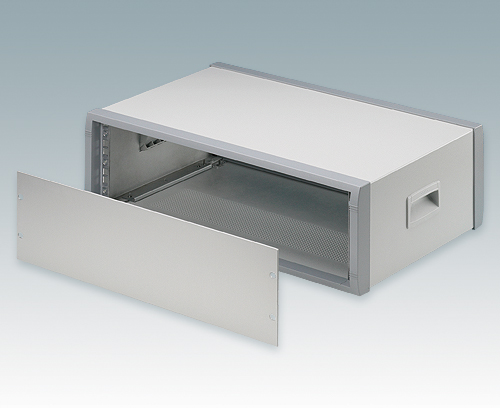

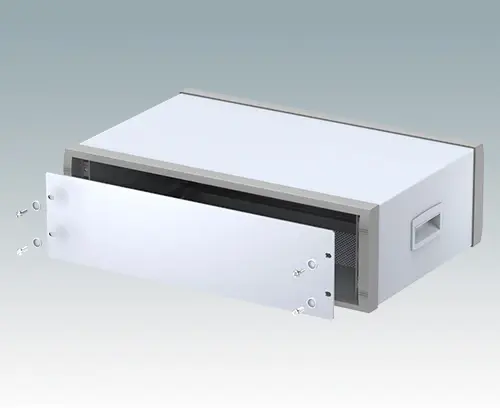

- Accessory anodized 10.5" and 19" front panels available.

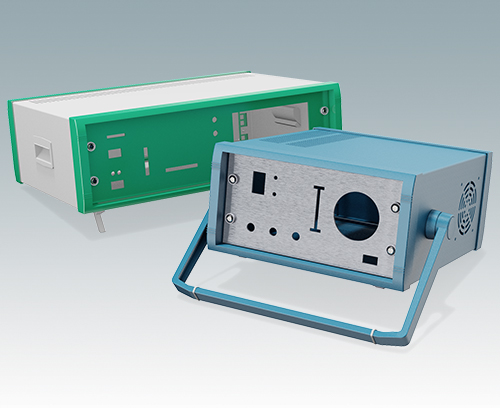

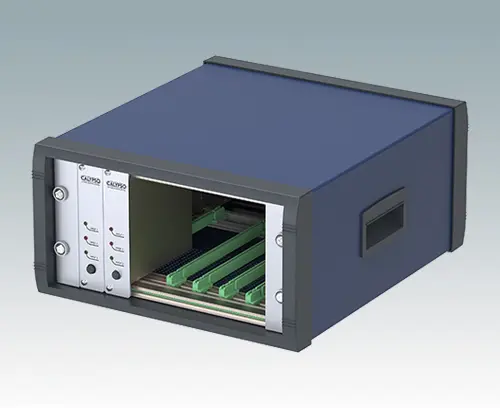

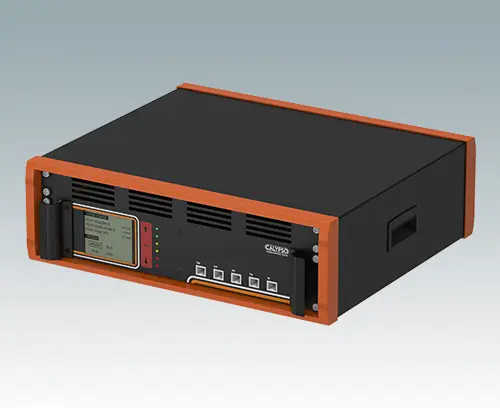

Order your own fully customized version learn more here >>
Application Fields
19" subrack or chassis based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

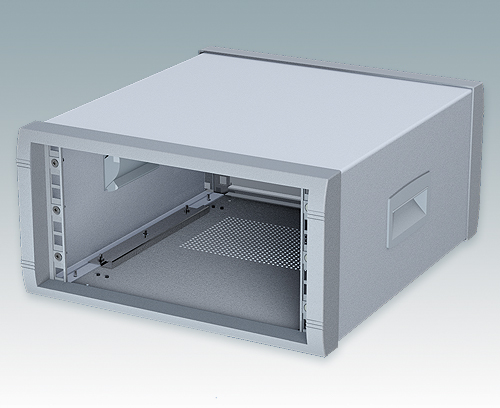

M6010305
Version With side handles

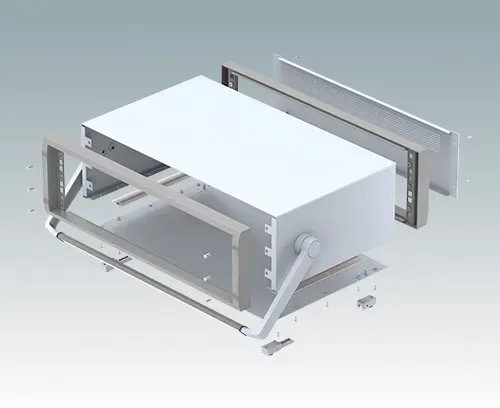

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
M6010305
INSTRUMET 10.5" 3Ux13.78"Light gray/window gray RAL 7035/7040
6.18″x11.93″x13.78″

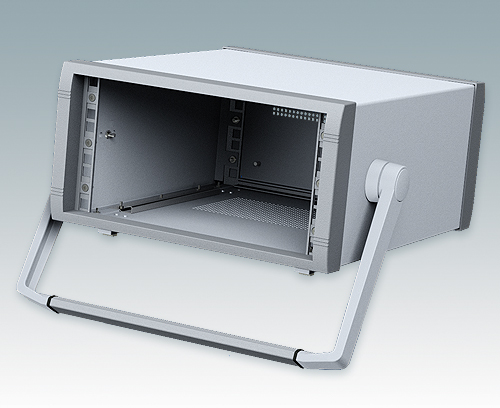

M6010315

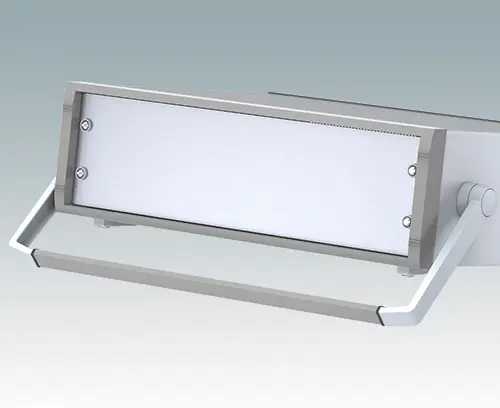

Version With handle/bail arm
Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
M6010315
INSTRUMET 10.5" 3Ux13.78"Light gray/window gray RAL 7035/7040
6.18″x11.93″x13.78″

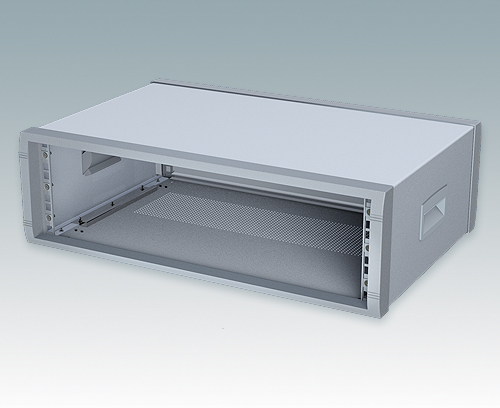

M6019305
Version With side handles
Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
M6019305
INSTRUMET 19" 3Ux13.78"Light gray/window gray RAL 7035/7040
6.18″x20.31″x13.78″

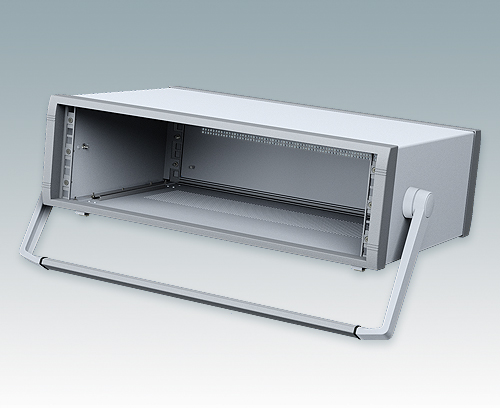

M6019315
Version With handle/bail arm
Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
M6019315
INSTRUMET 19" 3Ux13.78"Light gray/window gray RAL 7035/7040
6.18″x20.31″x13.78″

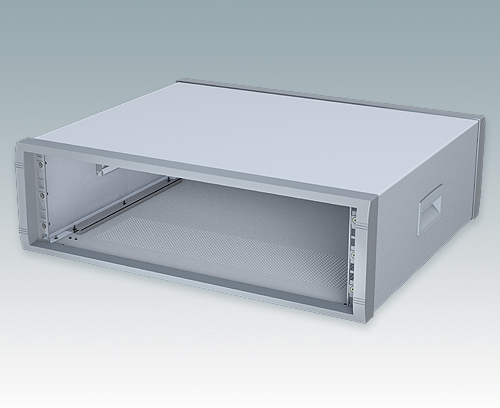

M6019325
Version With side handles
Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
M6019325
INSTRUMET 19" 3Ux17.72"Light gray/window gray RAL 7035/7040
6.18″x20.31″x17.72″

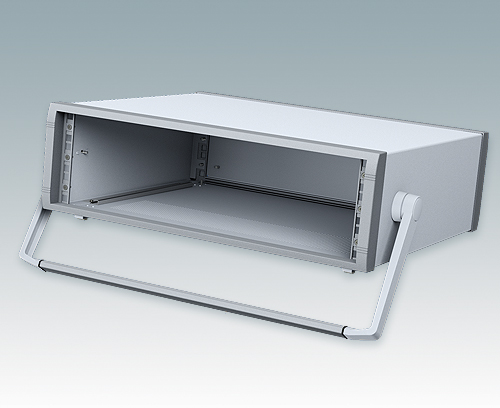

M6019335
Version With handle/bail arm
Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
M6019335
INSTRUMET 19" 3Ux17.72"Light gray/window gray RAL 7035/7040
6.18″x20.31″x17.72″
M5900016
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kit
M6000035
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).
M6000035
19" mounting kit
M6010001
Supply Front panel
M6010001
Front panel 3Ux10.5"Matt anodized
10.60″x0.12″x5.22″
M6019001
Supply Front panel
M6019001
Front panel 3Ux19"Matt anodized
19.00″x0.12″x5.22″
M6019010
Supply Panel
M6019010
Front panel 1Ux19"Matt anodized
19.00″x0.12″x1.72″
M6019011
Version With ventilation slots
Supply Panel
M6019011
Front panel 1Ux19" ventedMatt anodized
19.00″x0.12″x1.72″
