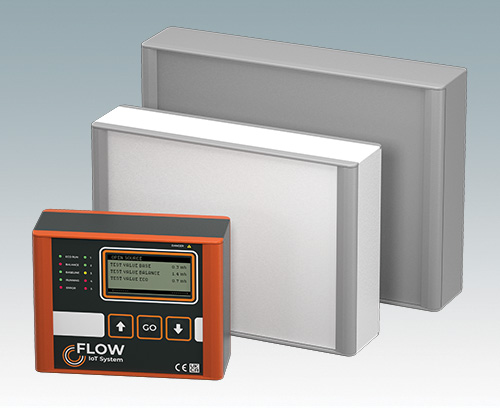

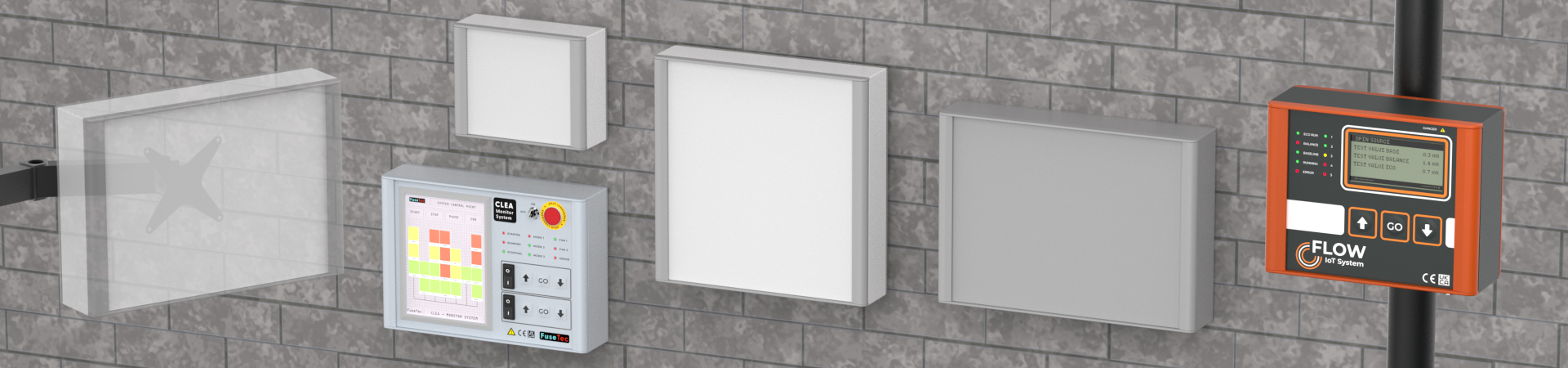

Modern, highly versatile VESA-mount enclosures for HMI, electronic controls, instrumentation
- Advanced aluminum housings developed for the installation of standard displays, panel PCs, HMIs (Siemens, Turck Banner, Beijer, Beckhoff, B&R...) and touchscreens of various sizes
- Cohesive design in four standard sizes with a slim profile just 3.74" deep

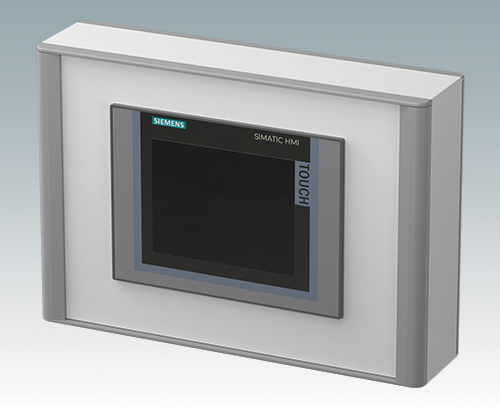

- Specifically suitable for Siemens TP displays, screen sizes KTP400 to TP1200 – Download datasheet >>
- Compatible with Turck Banner displays, model types TX705 to TX810 – Download datasheet >>
- Compatible with Beijer displays model types X2 – Download datasheet >>

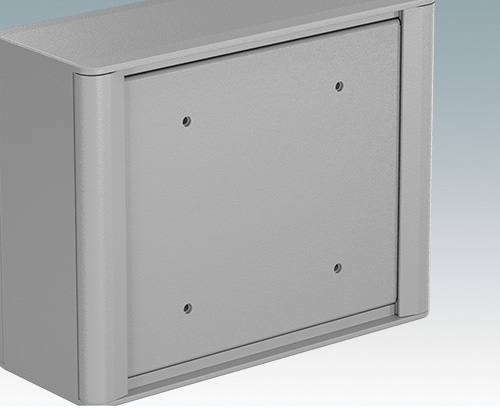

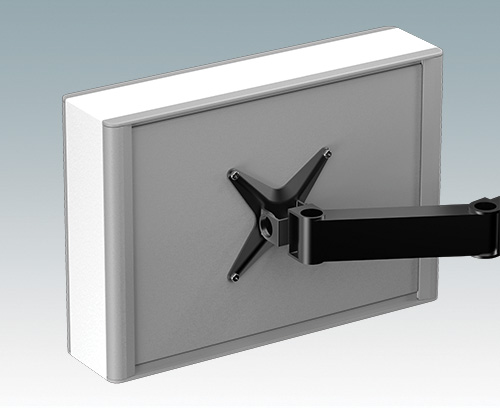

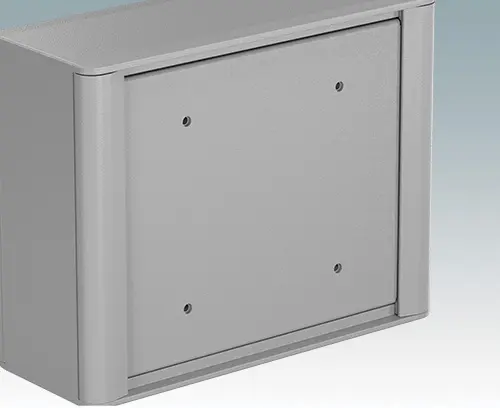

- Standard VESA MIS-D 100 mounting on the rear for a control arm, wall bracket etc.
- Diecast front/rear bezels fit flush with the case body for a smooth appearance

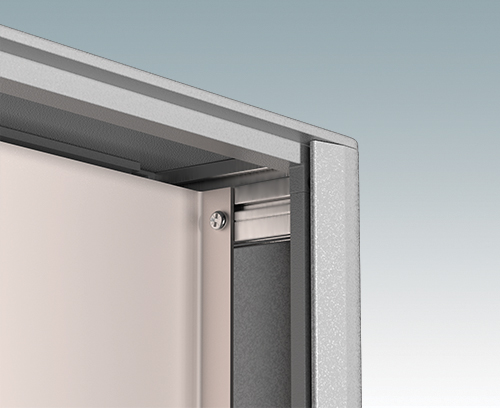

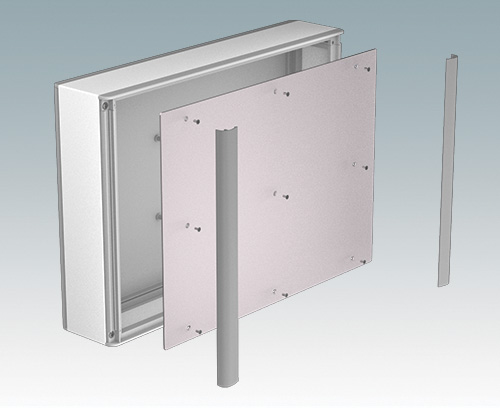

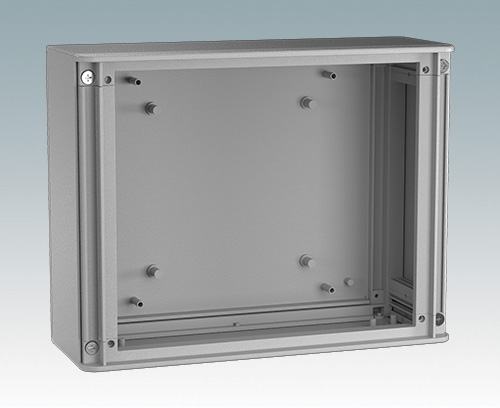

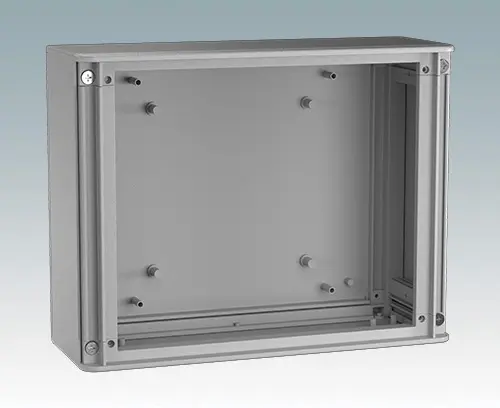

- Standard internal mounting options – M3 PCB pillars on the rear panel, M3 holes and guide rails in the assembly extrusions for holding internal plates
- Clever internal extrusion design means the product is cost-effective, yet easy to customize in any size, with excellent space for connectors

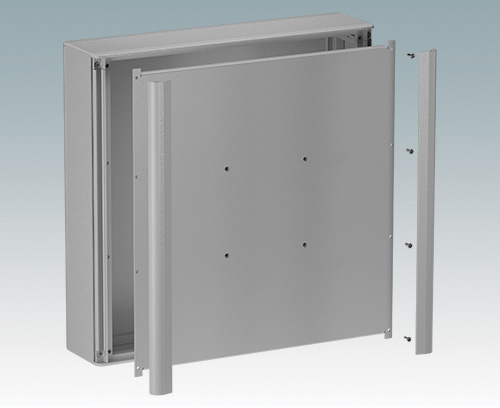

- Snap-on trims in the front/rear bezels hide all the assembly screws

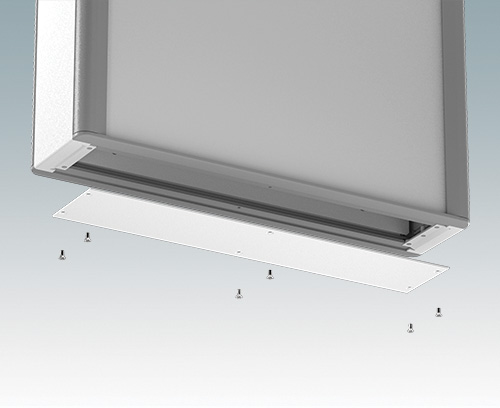

- Removable base panel on the underside with space for cable entry

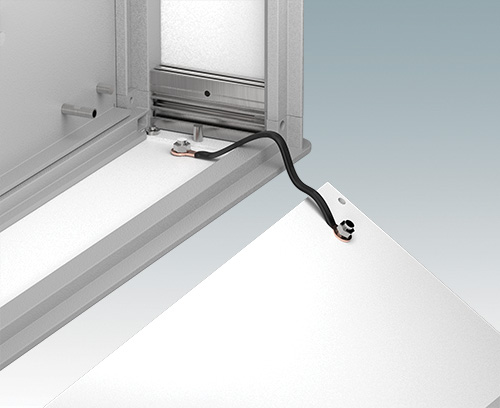

- All case panels fitted with M4 threaded pillars for earth connections

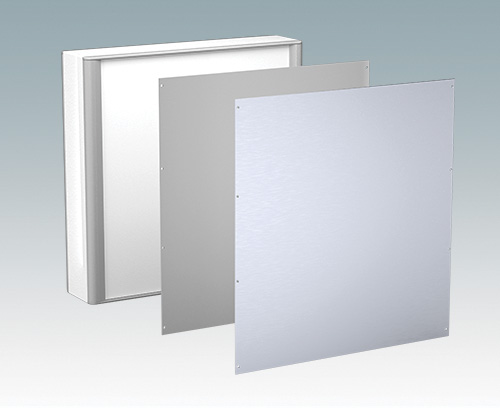

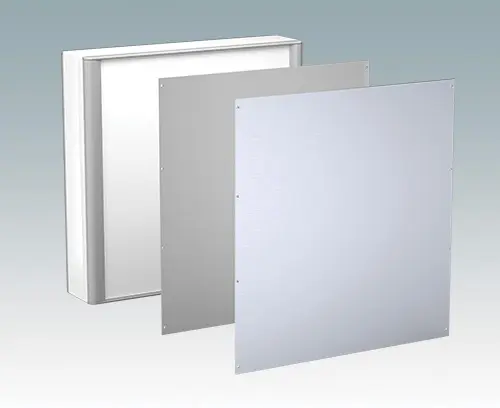

- Anodized and painted front panels (accessories) – recessed in the bezels to protect displays, keypads etc.

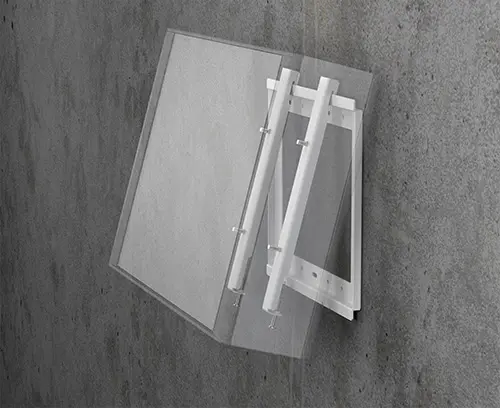

- Direct wall/machine mounting (with accessory kit)
- Accessory pole mounting bracket for poles ⌀1.97" or larger

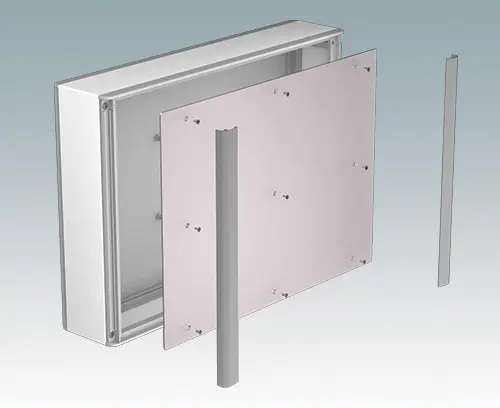

- Accessory internal mount plate kit.

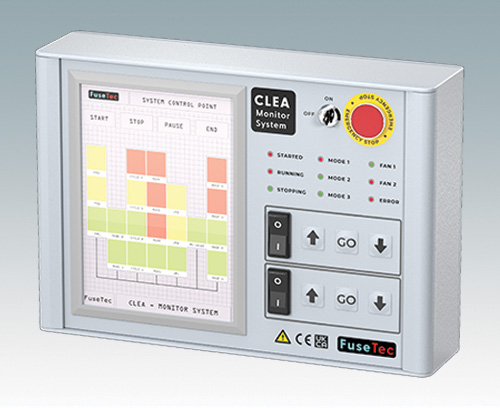

Order your own fully customized version learn more here >>
Application Fields
Modern enclosures for indoor applications such as machine control systems, HMI equipment, panel PCs, factory processing, security systems, industrial control, test and measurement devices, point-of-sale terminals, IIoT and detection equipment.

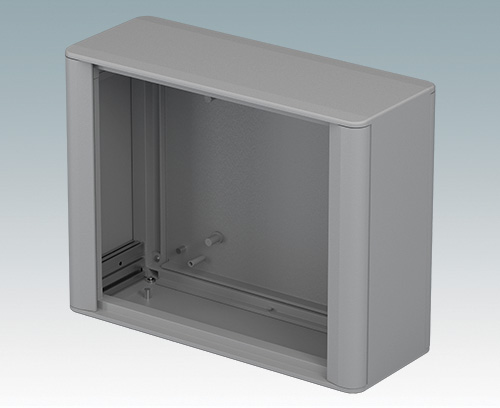

M7023002
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4
Version With VESA mount

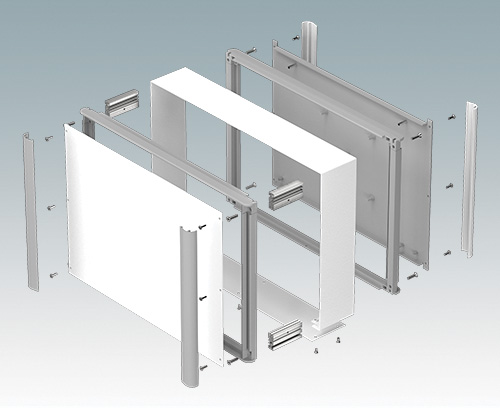

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.
M7023002
TECHNOMET-CONTROL C218VTraffic gray A RAL 7042
9.06″x7.09″x3.74″

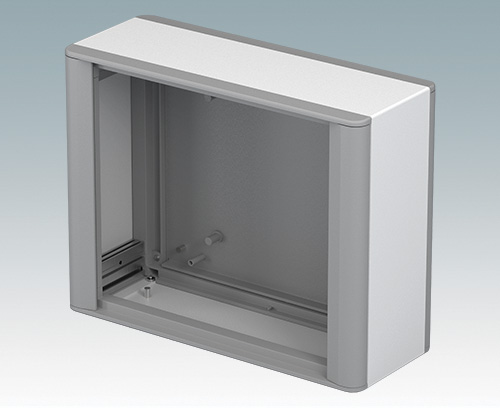

M7023006
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.
M7023006
TECHNOMET-CONTROL C218VTraffic white/traffic gray A RAL 9016/7042
9.06″x7.09″x3.74″
M7036102
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

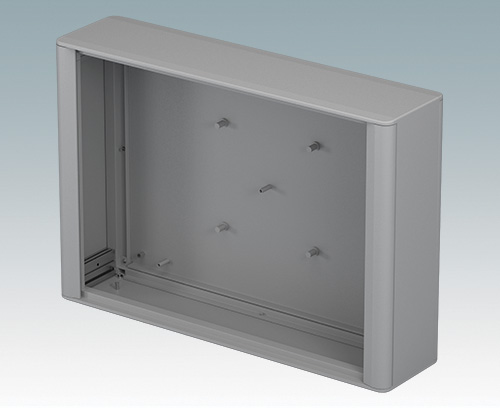

M7036102
TECHNOMET-CONTROL C325VTraffic gray A RAL 7042
14.17″x9.84″x3.74″

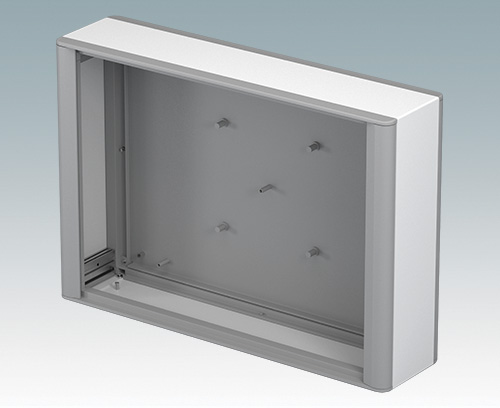

M7036106
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.
M7036106
TECHNOMET-CONTROL C325VTraffic white/traffic gray A RAL 9016/7042
14.17″x9.84″x3.74″

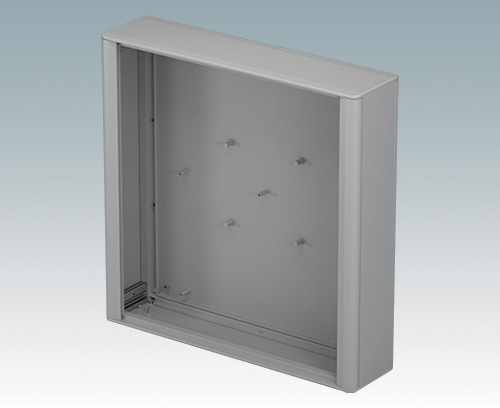

M7036402
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.
M7036402
TECHNOMET-CONTROL C336VTraffic gray A RAL 7042
14.17″x14.17″x3.74″

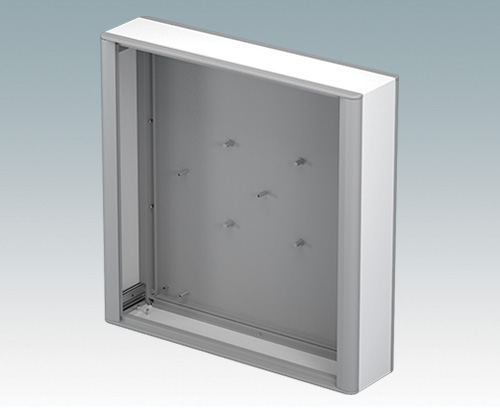

M7036406
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: TP700, MTP700, TP900, MTP1000
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x16), M4 x 16 mm (x8). Supplied assembled.
M7036406
TECHNOMET-CONTROL C336VTraffic white/traffic gray A RAL 9016/7042
14.17″x14.17″x3.74″
M7042202
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: TP900, MTP1000, TP1200, MTP1200
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10/12
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

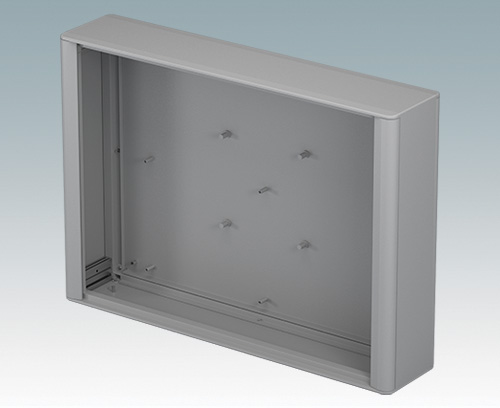

M7042202
TECHNOMET-CONTROL C430VTraffic gray A RAL 7042
16.54″x11.81″x3.74″

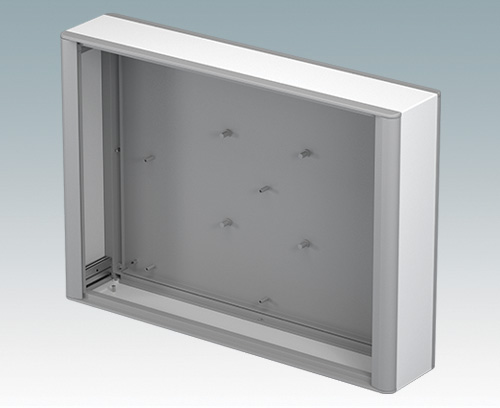

M7042206
Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: TP900, MTP1000, TP1200, MTP1200
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10/12
Version With VESA mount
Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.
M7042206
TECHNOMET-CONTROL C430VTraffic white/traffic gray A RAL 9016/7042
16.54″x11.81″x3.74″

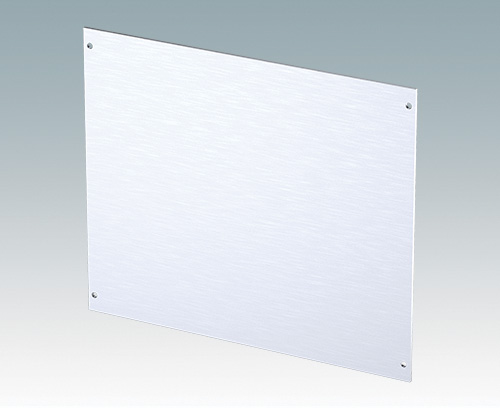

M7000700
Supply Front panel (fixings supplied with the cases).
M7000700
Front Panel A – C218Matt anodized
7.95″x0.08″x6.72″

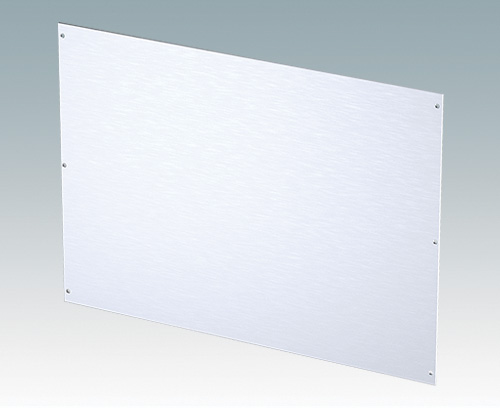

M7000702
Supply Front panel (fixings supplied with the cases).
M7000702

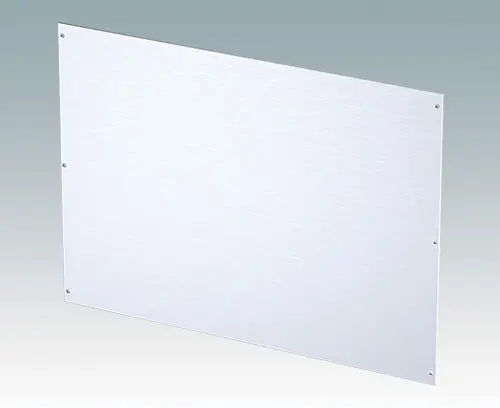

Front Panel A – C325Matt anodized
13.07″x0.08″x9.48″
M7000704
Supply Front panel (fixings supplied with the cases).
M7000704

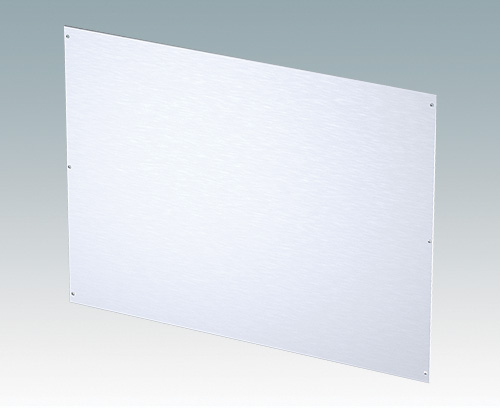

Front Panel A – C336Matt anodized
13.07″x0.08″x13.81″

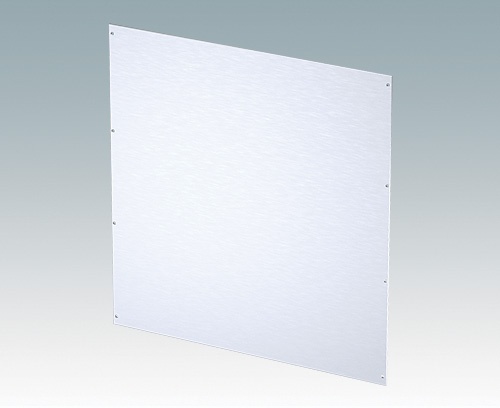

M7000706
Supply Front panel (fixings supplied with the cases).
M7000706

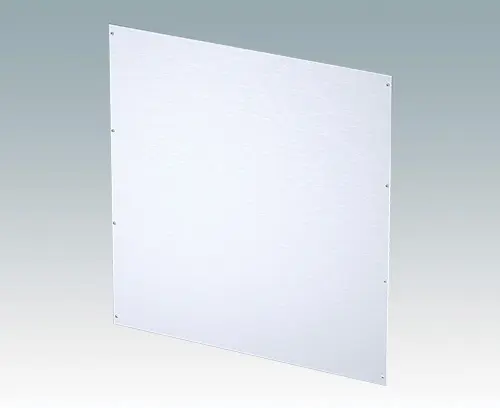

Front Panel A – C430Matt anodized
15.43″x0.08″x11.45″

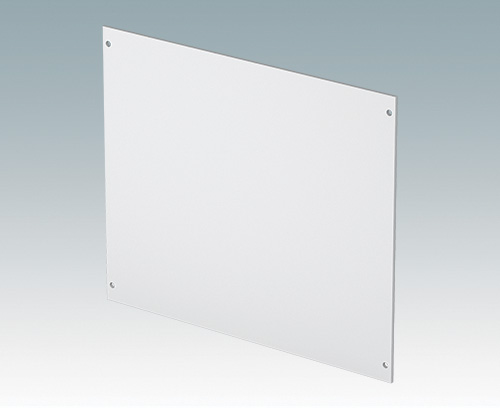

M7000720
Supply Front panel (fixings supplied with the cases).
M7000720
Front Panel P – C218Traffic white RAL 9016
7.95″x0.08″x6.72″

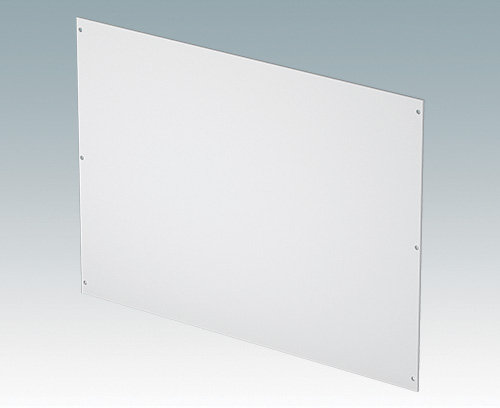

M7000722
Supply Front panel (fixings supplied with the cases).
M7000722
Front Panel P – C325Traffic white RAL 9016
13.07″x0.08″x9.48″

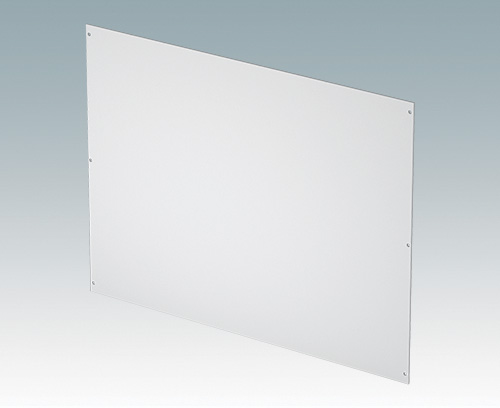

M7000724
Supply Front panel (fixings supplied with the cases).
M7000724

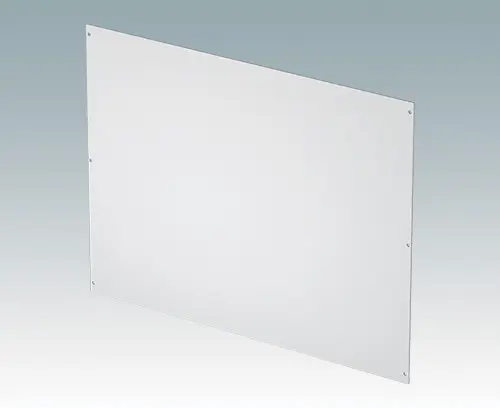

Front Panel P – C336Traffic white RAL 9016
13.07″x0.08″x13.81″

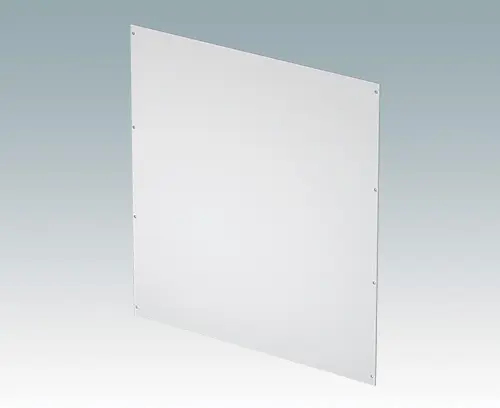

M7000726
Supply Front panel (fixings supplied with the cases).
M7000726

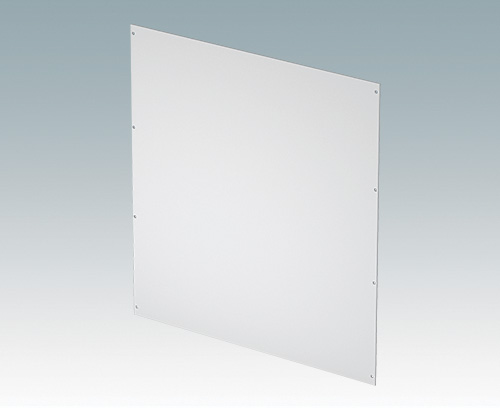

Front Panel P – C430Traffic white RAL 9016
15.43″x0.08″x11.45″
M7000740
Supply Front panel (fixings supplied with the cases).
M7000740
Front Panel P – C218Traffic gray A RAL 7042
7.95″x0.08″x6.72″

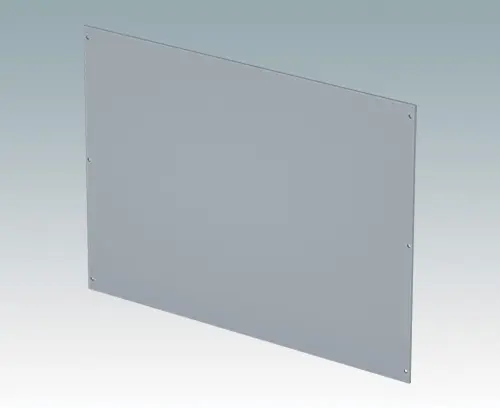

M7000742
Supply Front panel (fixings supplied with the cases).
M7000742

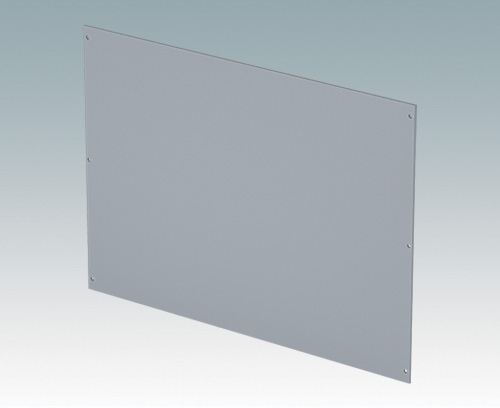

Front Panel P – C325Traffic gray A RAL 7042
13.07″x0.08″x9.48″

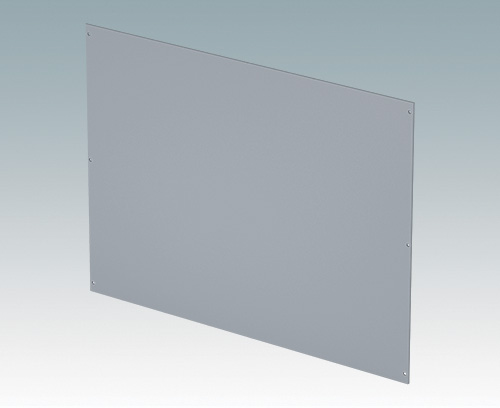

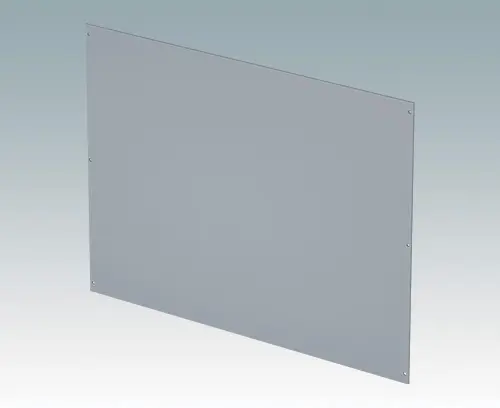

M7000744
Supply Front panel (fixings supplied with the cases).
M7000744
Front Panel P – C336Traffic gray A RAL 7042
13.07″x0.08″x13.81″

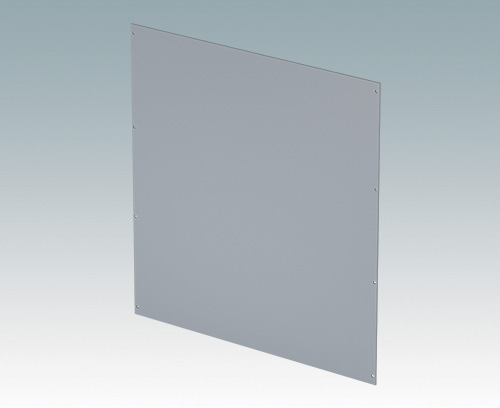

M7000746
Supply Front panel (fixings supplied with the cases).
M7000746
Front Panel P – C430Traffic gray A RAL 7042
15.43″x0.08″x11.45″

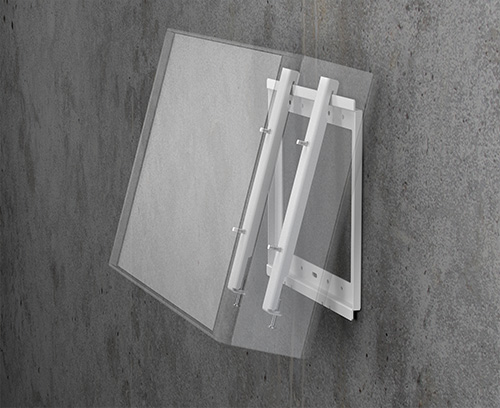

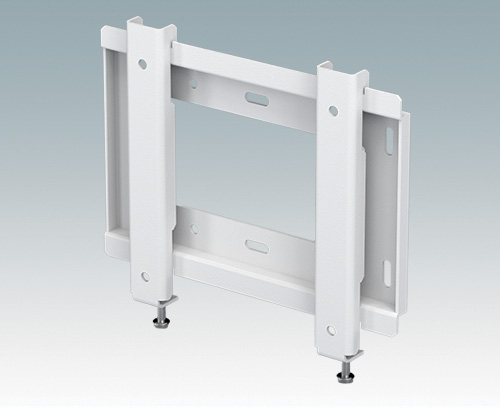

M7000900
Supply Wall Plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)
M7000900

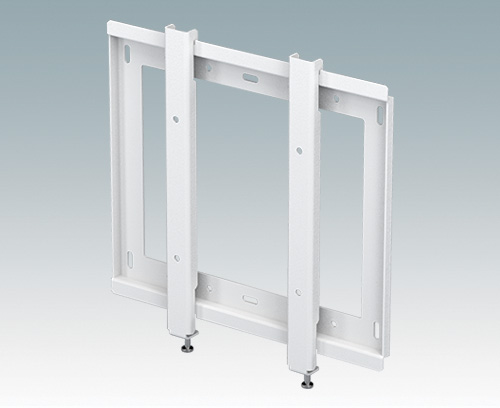

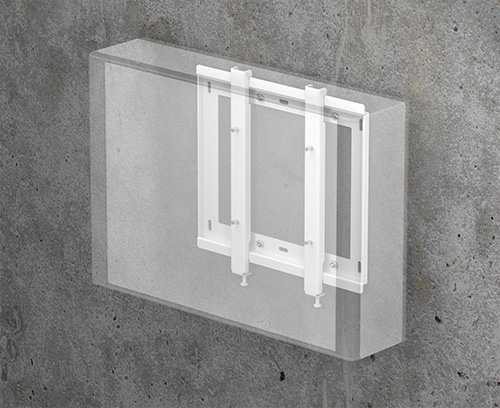

Wall Mounting Kit STraffic white RAL 9016
6.18″x5.71″x0.63″
M7000905
Supply Wall plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)
M7000905
Wall Mounting Kit LTraffic white RAL 9016
8.86″x9.25″x0.63″

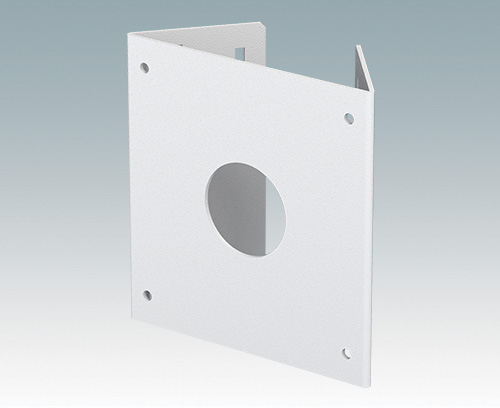

M7000920
Supply Bracket (x1), M4 x 6 mm (x4)
M7000920

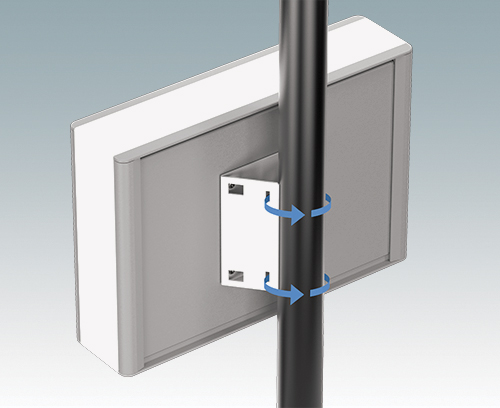

Pole-Mount BracketTraffic white RAL 9016
4.72″x4.92″x1.77″

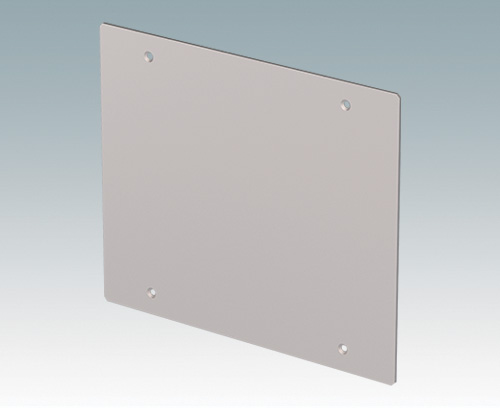

M7000940
Supply Mounting plate, M3 x 8 (x4)
M7000940
Internal Mounting Plate Kit – C218Natural finish
7.13″x6.10″x0.06″

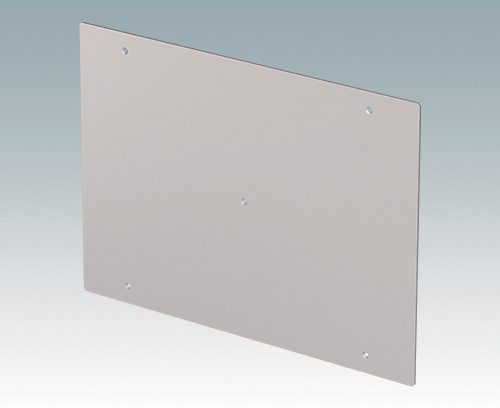

M7000942
Supply Mounting plate, M3 x 8 (x5)
M7000942
Internal Mounting Plate Kit – C325Natural finish
12.24″x8.86″x0.06″
M7000944
Supply Mounting plate, M3 x 8 (x9)
M7000944

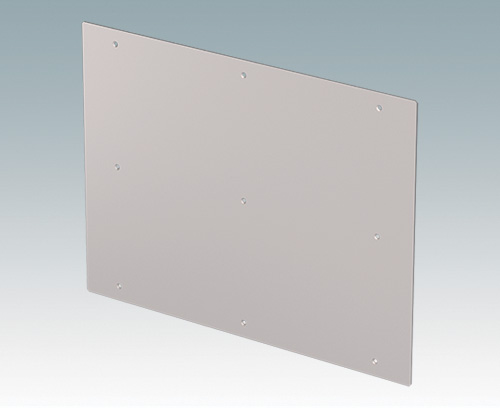

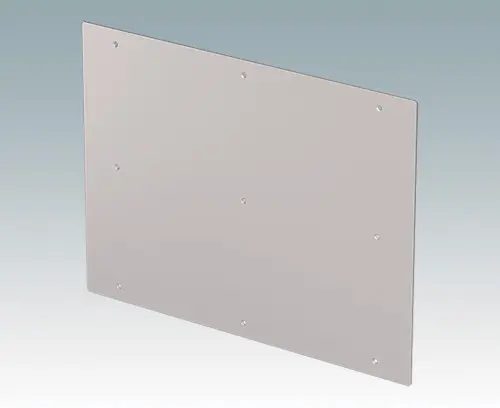

Internal Mounting Plate Kit – C336Natural finish
12.24″x13.19″x0.06″

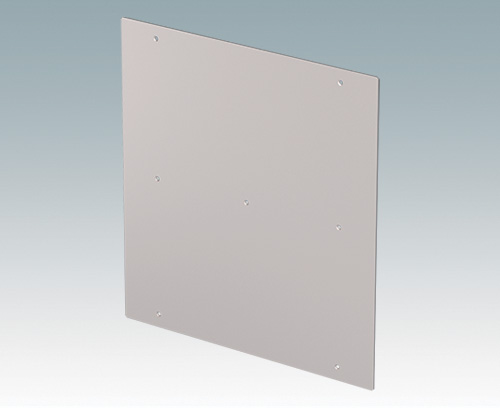

M7000946
Supply Mounting plate, M3 x 8 (x7)
M7000946
Internal Mounting Plate Kit – C430Natural finish
14.61″x10.83″x0.06″
