19" Enclosures
M7023006
TECHNOMET-CONTROL C218V

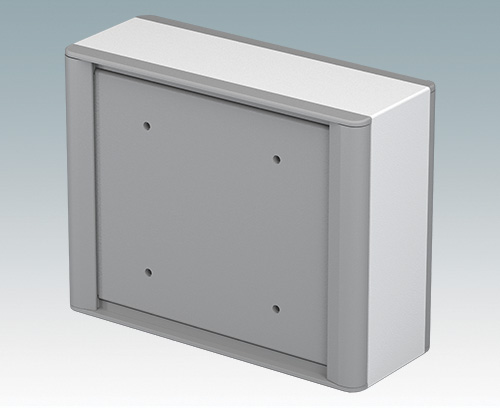

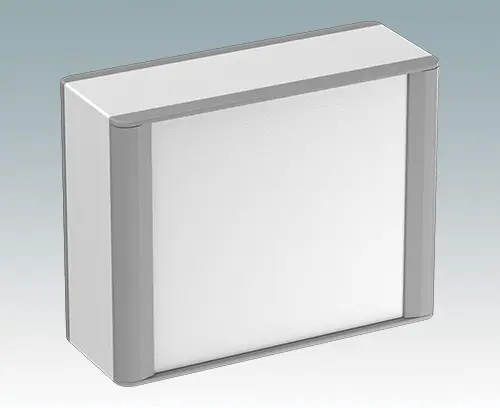

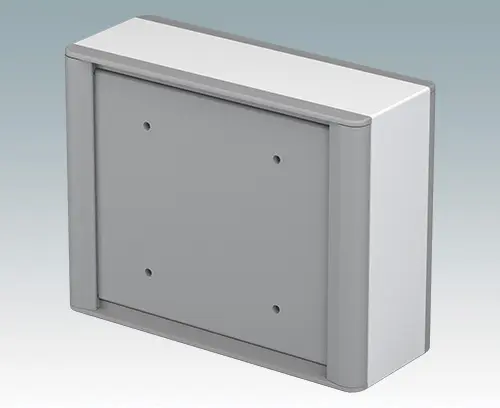

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.
COMPATIBLE DISPLAYS
SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4
With VESA mount
SupplyFront bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.
Generate Your PDF Datasheet for M7023006
Please select the product details you would like to include in the PDF.
Accessory
M7000700
Supply Front panel (fixings supplied with the cases).
M7000700
Front Panel A – C218Matt anodized
7.95″x0.08″x6.72″
M7000720
Supply Front panel (fixings supplied with the cases).
M7000720
Front Panel P – C218Traffic white RAL 9016
7.95″x0.08″x6.72″
M7000740
Supply Front panel (fixings supplied with the cases).
M7000740
Front Panel P – C218Traffic gray A RAL 7042
7.95″x0.08″x6.72″
M7000900
Supply Wall Plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)
M7000900
Wall Mounting Kit STraffic white RAL 9016
6.18″x5.71″x0.63″
M7000920
Supply Bracket (x1), M4 x 6 mm (x4)
M7000920
Pole-Mount BracketTraffic white RAL 9016
4.72″x4.92″x1.77″
M7000940
Supply Mounting plate, M3 x 8 (x4)
M7000940
Internal Mounting Plate Kit – C218Natural finish
7.13″x6.10″x0.06″
RoHS compliant
VESA MIS-D 100
