19" Enclosures
Painting & Finishing

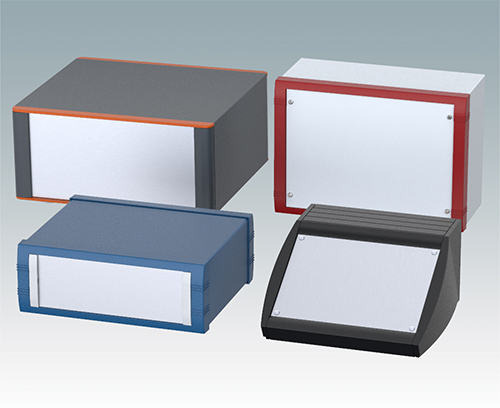

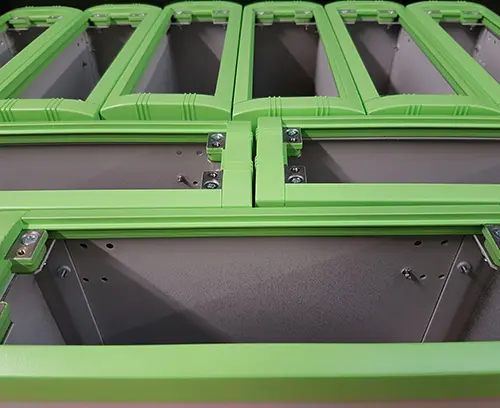

Enclosures and front panels finished in your corporate colors

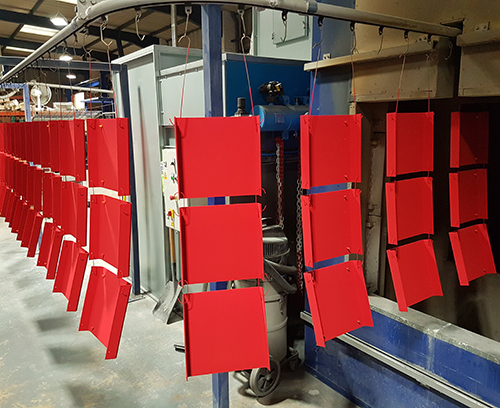

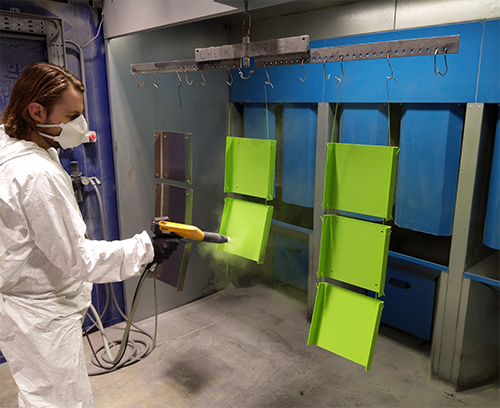

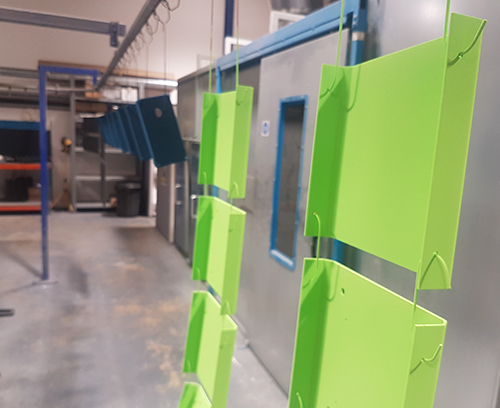

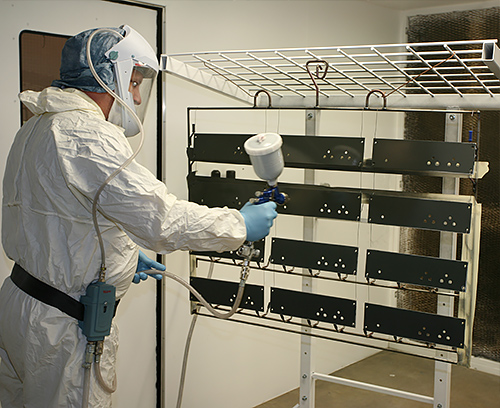

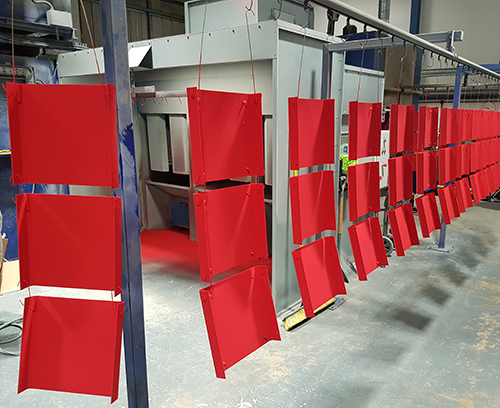

Our in-house facilities include a state of the art powder paint line.
Optional Stocked Powder Paints (Listed below)
We keep a large selection powder paints in RAL and Pantone colors in stock. There is no additional charge, or minimum order quantity, for painting our standard enclosures in one of our stocked paints. Simply contact our sales team to discuss your desired color or color combination.
Note: color images are provided as a guide only. Please refer to the exact RAL or Pantone references before finalizing your color choice.
Custom Colors

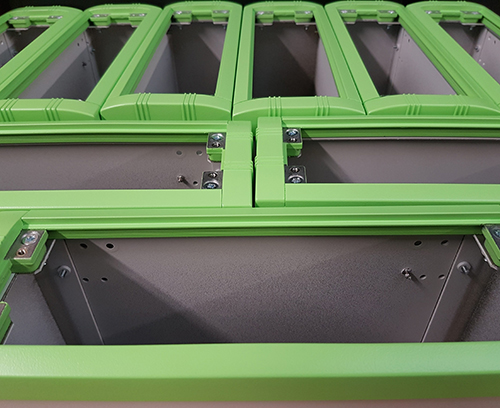

We can also supply enclosures, front panels and custom metalwork painted in your desired paint colour or other finish. When selecting a paint color which is not from our stock list, the typical minimum order quantity for special color enclosures and front panels is 10 to 25 units, depending upon the color required. If it is a stocked color, then there is no minimum order quantity.
We generally work with RAL colors, but can match other colors on demand. Talk to our sales team if you need a specific color or finish.
What we offer:

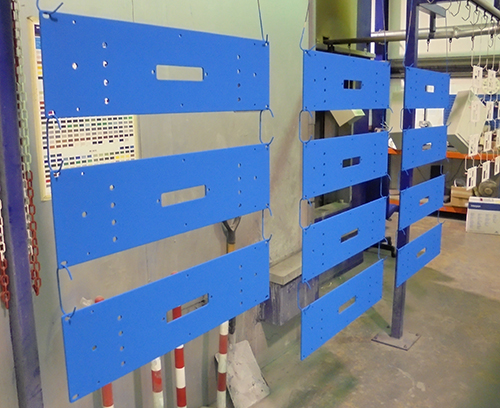

- Powder polyester painting - tough, high quality finish in fine and heavy textures
- RFI/EMI shielding for plastic parts
- Linishing of aluminum panels for a blemish free finish
- Full colour CMYK digital printing.
Use the contact form or call our sales team on (800) 965-9872 for more information and a quotation.
M0000499
M0000499

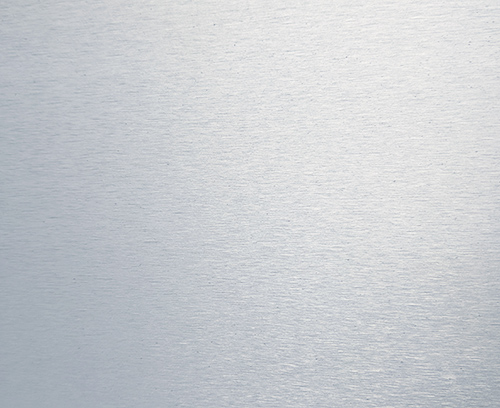

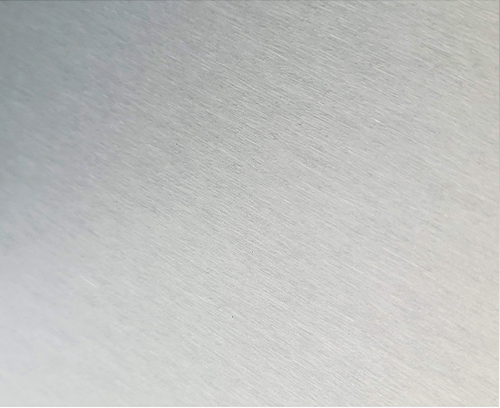

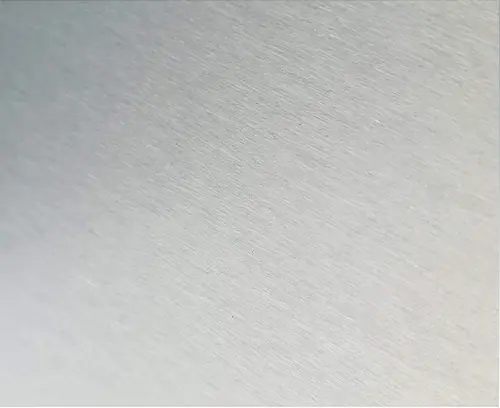

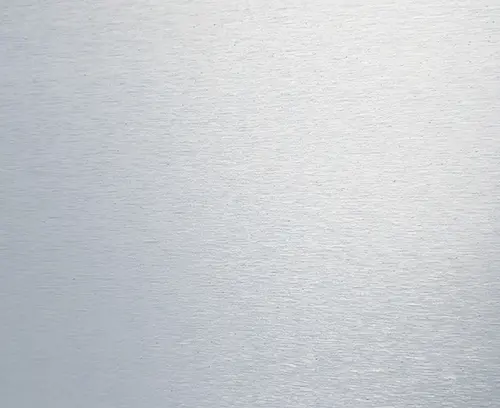

Matt Anodised Paint
M0000500
This matt anodized finish is standard on all of our front panels. It is optional on rear panels and other custom components made to order.
Because of unavoidable small marks created during our CNC punching and forming processes, we do not recommend anodizing enclosure covers, side panels, top and bases. (These marks are not visible when the items are painted).
The Process
Anodizing is an electrolytic passivation process used to increase the thickness of the natural oxide layer on the surface of metal parts. The process is called anodizing because the part to be treated forms the anode electrode of an electrolytic cell.
M0000500
Matt Anodized
M0000501

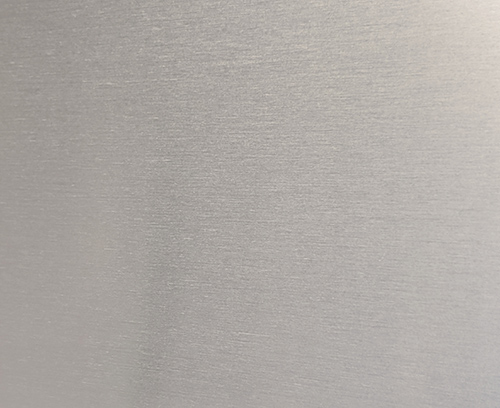

This conductive protective coating is standard on the aluminium case body of our METTEC 19" rack cases. It is suitable for internal components and housings fitted in racks and cabinets where the aesthetics of the finish is not important. As a result, we do not recommended it for visible surfaces on desktop and portable enclosures.
The Process
Iridite NCP anti-corrosion treatment is an effective replacement for conventional hexavalent chromates. It produces a trivalent chromium conversion coating on both wrought and cast aluminium surfaces providing an iridescent to clear surface finish. This treatment is safer than traditional hexavalent chromates.M0000501
Iridite NCP
M0000502
SURFACE TREATMENT BEFORE PAINTING

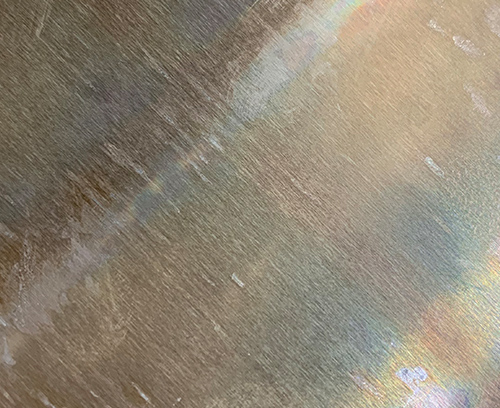

We put all aluminum and mild steel (CR4) components through a pretreatment process prior to painting. The pretreatment removes oils, greases and other agents used during manufacturing, and converts the metal surface to a non-metallic layer. This significantly improves the application, adhesion and surface finish of the paint.
Notes. Unfinished internal parts of our enclosures also go through this process. The process gives the material a brown/gold surface coloration which is normal. Panels which are going to be anodized do not go through this process.
The Pretreatment Process Sequence:
- Tank 1 - Gardoclean® alkali cleaner + Gardobond® A 4913 lightweight amorphous iron phosphate pretreatment
- Tank 2 - Water rinse
- Tank 3 - Gardolene® D6870 Chromium-free post pretreatment rinse
- Drying oven - 150°C, 15 minutes
- Ready for painting
Gardoclean®, Gardobond® and Gardolene® are registered trademarks of Chemetall GmbH.
M0000502
Pretreatment
M0001018
Custom Color
Optional powder paint colors are available in RAL or Pantone ranges. We keep a limited selection in stock. No minimum order quantity or extra cost for painting standard parts in our stocked custom colors. Check with our sales team for current color availablility.
If you request a special color which we do not have in stock, we can obtain this for a one-off charge.
Paint materials/finishes available:
- Polyester / Fine texture
- Epoxy-Polyester / Fine texture
M0001018
Custom Color
M0007016
Anthracite
Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.
Paint materials/finishes available:
- Polyester / Fine texture
M0007016
RAL 7016 PaintAnthracite RAL 7016
M0007035
Light gray
Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.
Paint materials/finishes available:
- Polyester / Fine texture
- Epoxy-Polyester / Leatherette
M0007035
RAL 7035 PaintLight gray RAL 7035
M0007040
Window gray
Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.
Paint materials/finishes available:
- Epoxy-Polyester / Fine texture
M0007040
RAL 7040 PaintWindow gray RAL 7040
M0007042
Traffic gray
Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.
Paint materials/finishes available:
- Epoxy-Polyester / Fine texture
M0007042
RAL 7042 PaintTraffic gray A RAL 7042
M0009005
Jet black
Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.
Paint materials/finishes available:
- Polyester / Matt fine texture
M0009005
RAL 9005 PaintBlack RAL 9005
M0009016
Traffic white
Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.
Paint materials/finishes available:
- Polyester / Fine texture
M0009016
RAL 9016 PaintTraffic white RAL 9016
