19" Enclosures
M6400815
Shelf Kit 235

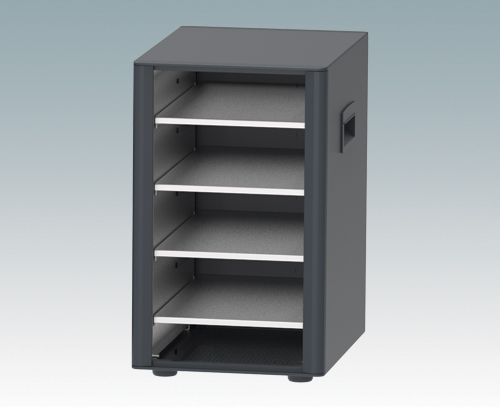

Internal shelf kit for tower version TX235S. Designed for mounting PCBs and electronic assemblies. The shelf is assembled to the internal chassis using the fixings included in the kit. Up to four shelves can be fitted to the TX235S size tower.
SupplyShelf (1.5 mm natural aluminum), M4 x 12 (x4)
Generate Your PDF Datasheet for M6400815
Please select the product details you would like to include in the PDF.
M6421754
Version Tower format
Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.
M6421754
Technomet TX235SAnthracite RAL 7016
8.66″x11.81″x13.78″
M6421756
Version Tower format
Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.
M6421756
Technomet TX235STraffic white/traffic gray A RAL 9016/7042
8.66″x11.81″x13.78″
RoHS compliant
Catalog Pages
- TECHNOMET catalog (English) 4,005 KB
- Catálogo TECHNOMET (Español) 4,054 KB
Drawings
- AutoCAD DXF-File 1,211 KB
- AutoCAD DWG-File 228 KB
- PDF-File 244 KB
3D Models
- M6400815.stp 71 KB
- M6400815.x_t 56 KB
- M6400815.sat 71 KB
(METCASE product)
View our customizing options and don't forget to request a quotation!
