19" Enclosures
Technomet

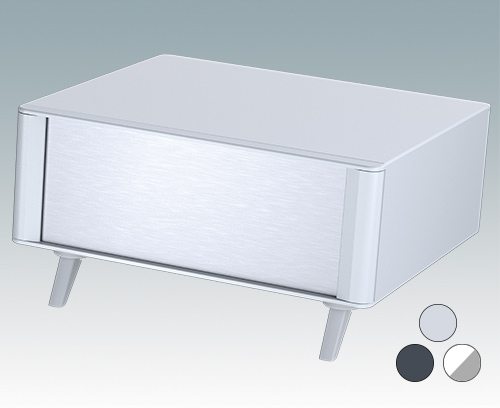

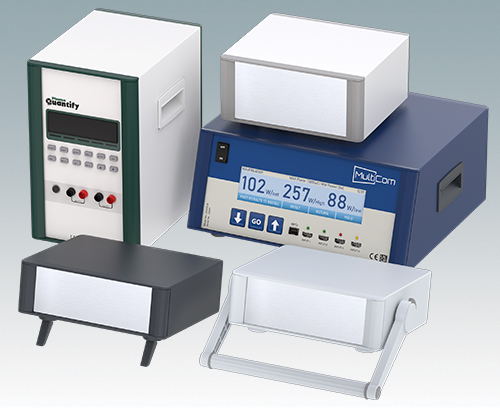

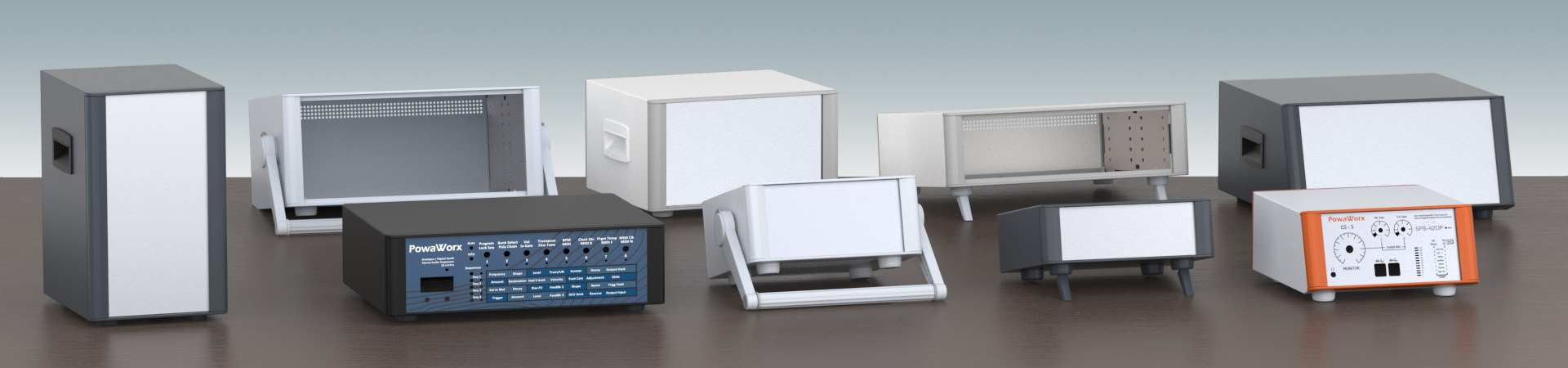

Highly attractive instrument enclosures

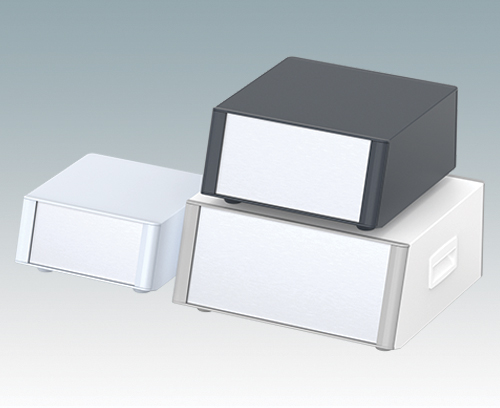

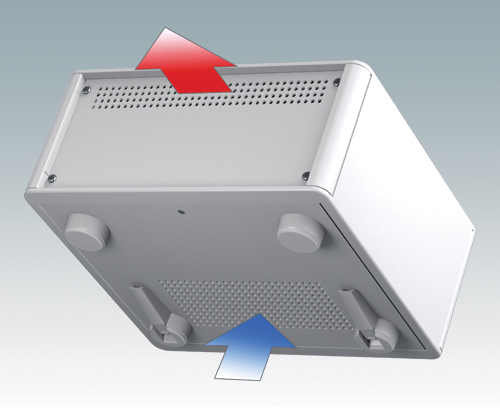

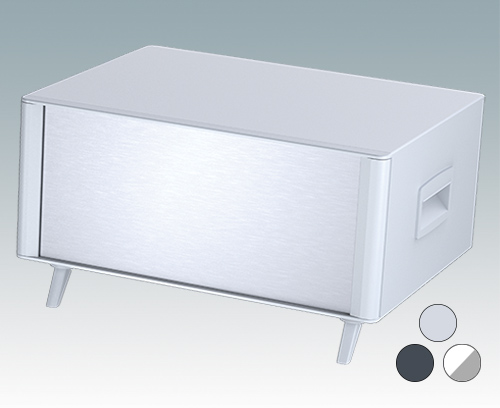

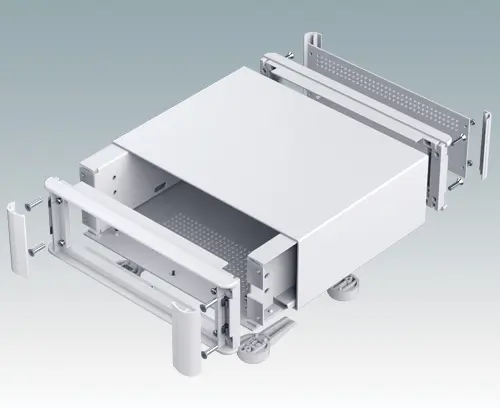

- Advanced desktop and portable enclosures in thirteen standard sizes all with ventilation
- Modern and cohesive design with no visible fixing screws
- Die cast front and rear bezels fit flush with the case body for a smooth appearance

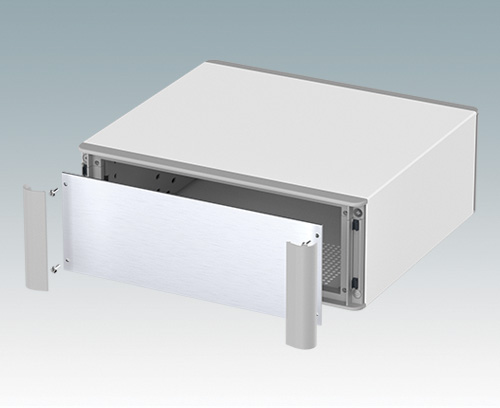

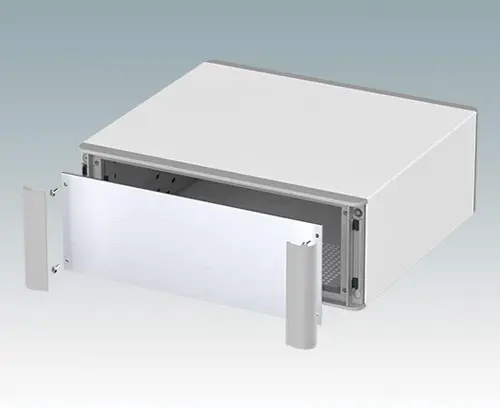

- Snap-on front trims hide the case and front panel fixing screws

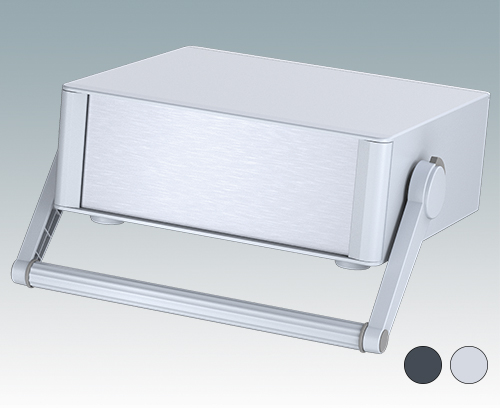

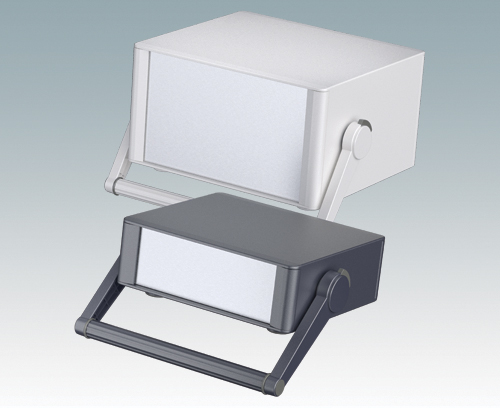

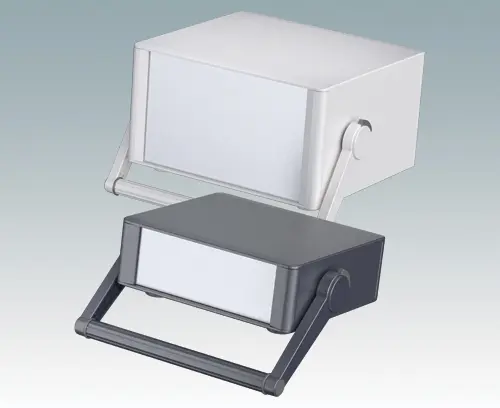

- All sizes available with or without a bail arm/handle, or ABS side handles (5.90")

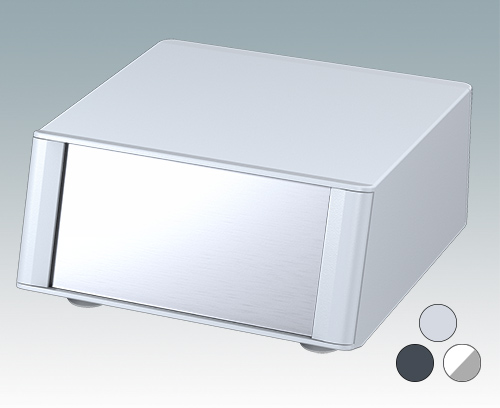

- Three versions with sloping front panel (SL)

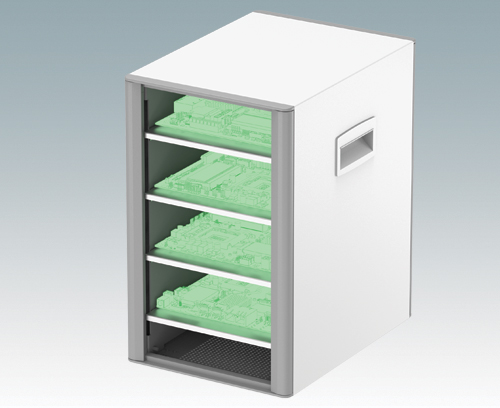

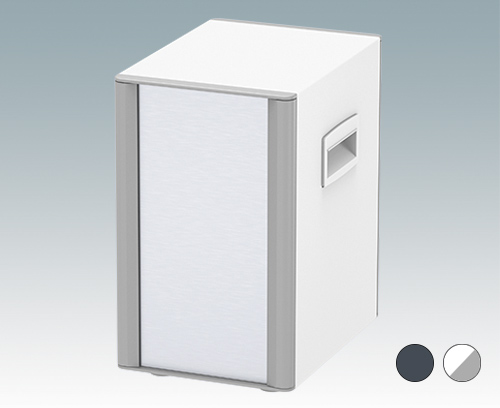

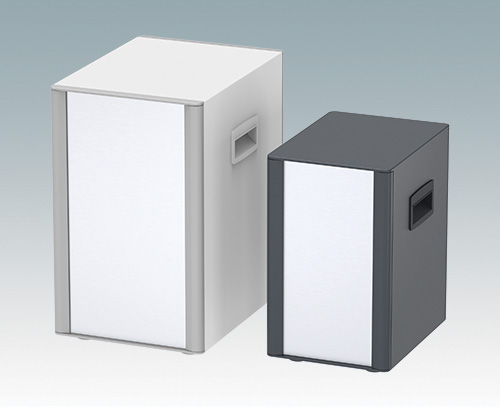

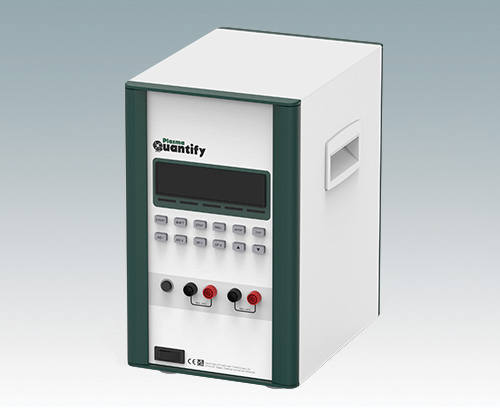

- Two tower style versions (TX) for maximizing desktop space

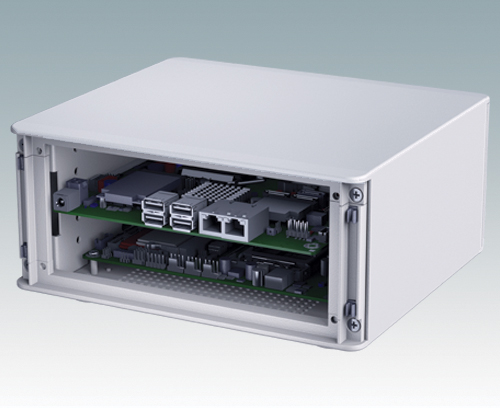

- Base panel pre-fitted with four M3 PCB mounting pillars

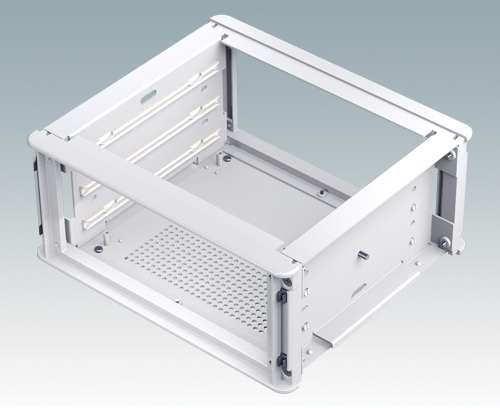

- Internal chassis prepunched for fitting snap-in PCB guides (accessories) in 3, 5, 7 or 9 positions

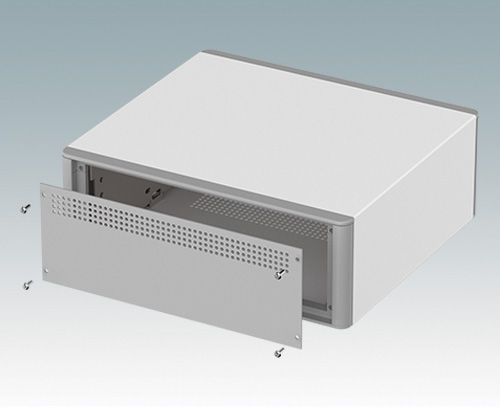

- Removable rear panel - recessed for protection of connectors, switches etc.
- Anodized front panel (accessory) - recessed for protection of keypads, displays etc.
- All case panels fitted with M4 threaded pillars for earth connection
- Supplied with four modern ABS feet with non-slip pads.

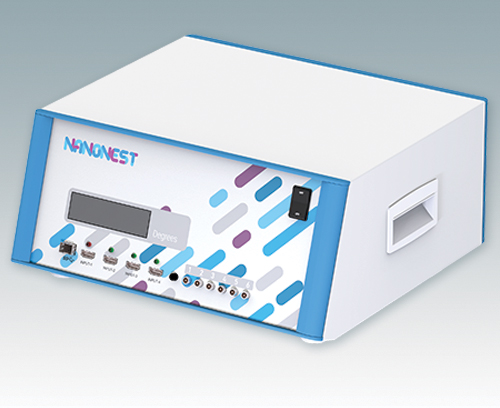

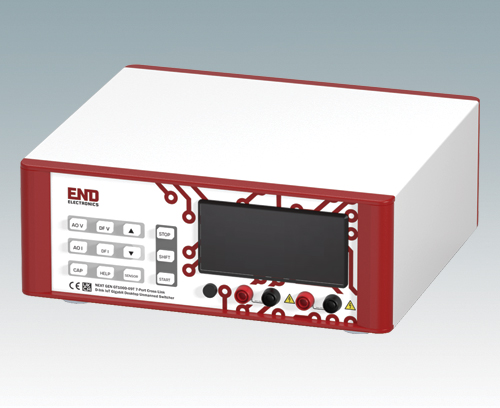

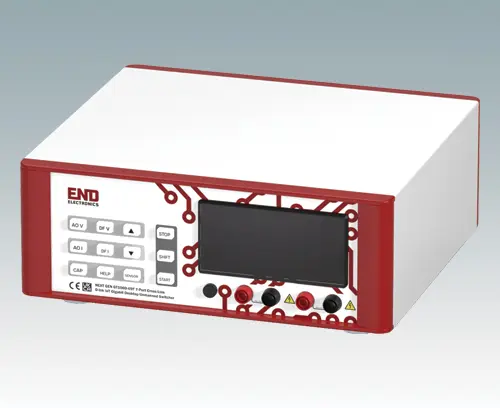

Order your own fully customised version learn more here >>
Application Fields
Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.Select which version/size you want below or browse full product list
M5600010

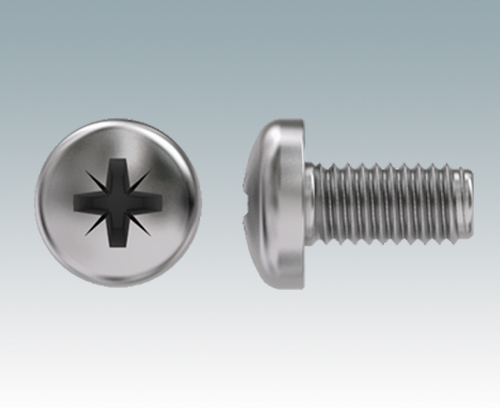

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET
Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.
Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.
Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).
M5600010
PCB Fixing Screws, M3Zinc coated
0.24″

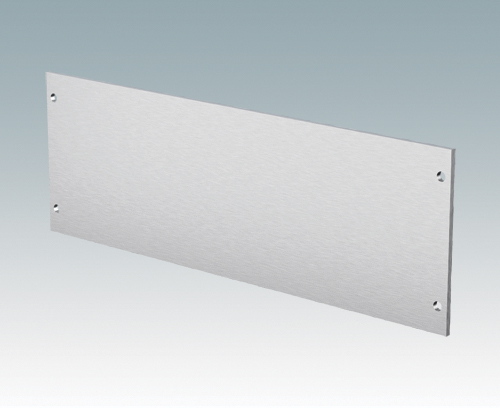

M6400700
Supply Front panel (fixings supplied with the cases).

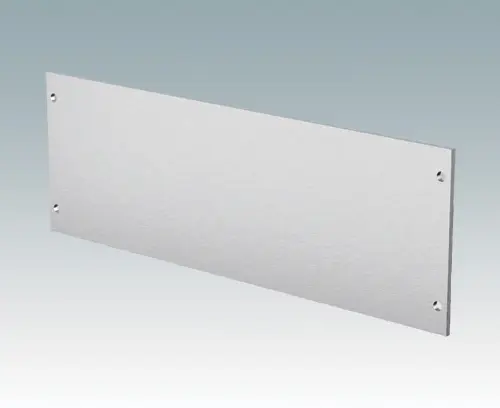

M6400700
Front Panel 107Matt anodized
7.76″x0.08″x2.59″

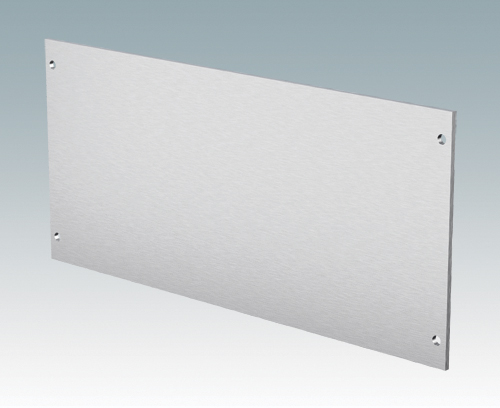

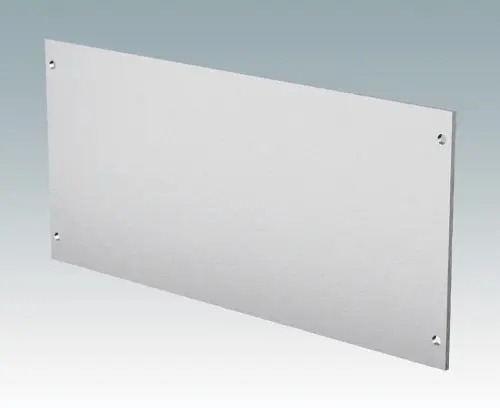

M6400701
Supply Front panel (fixings supplied with the cases).
M6400701
Front Panel 110Matt anodized
7.76″x0.08″x3.57″

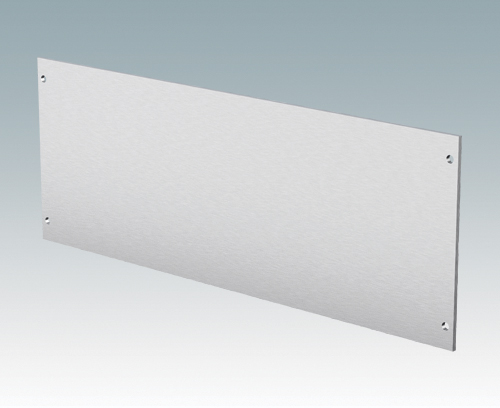

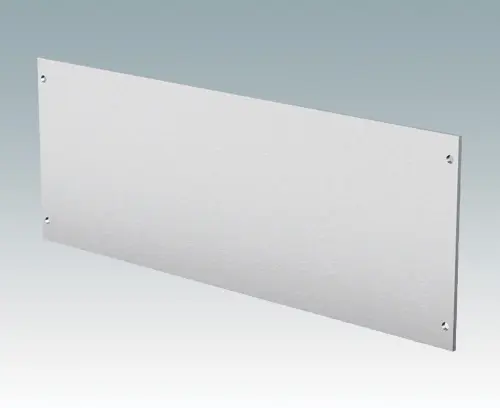

M6400702
Supply Front panel (fixings supplied with the cases).
M6400702
Front Panel 210Matt anodized
9.72″x0.08″x3.57″

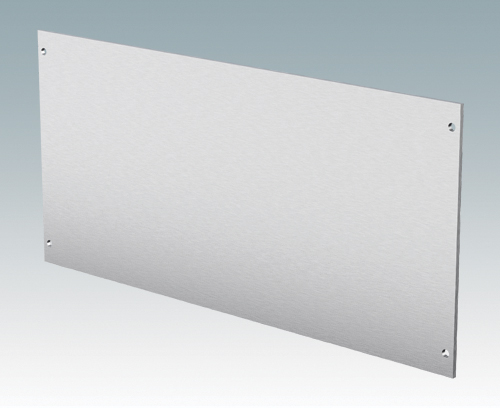

M6400703
Supply Front panel (fixings supplied with the cases).
M6400703
Front Panel 212Matt anodized
9.72″x0.08″x4.56″

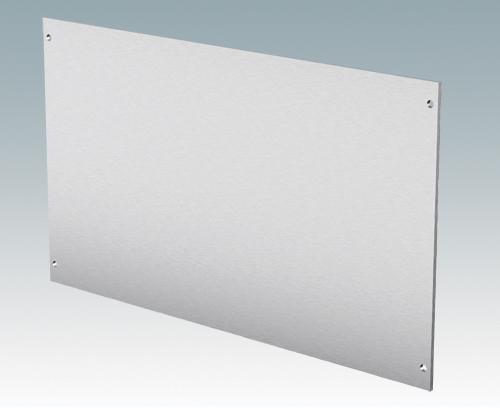

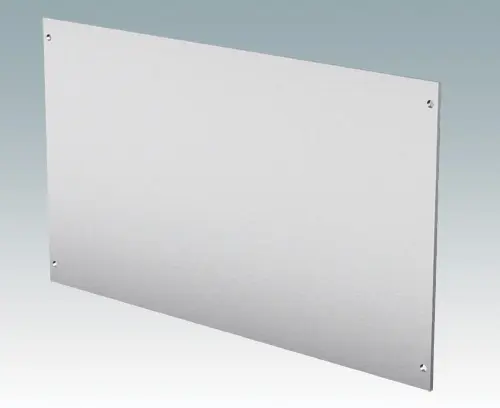

M6400704
Supply Front panel (fixings supplied with the cases).
M6400704
Front Panel 215Matt anodized
9.72″x0.08″x5.54″

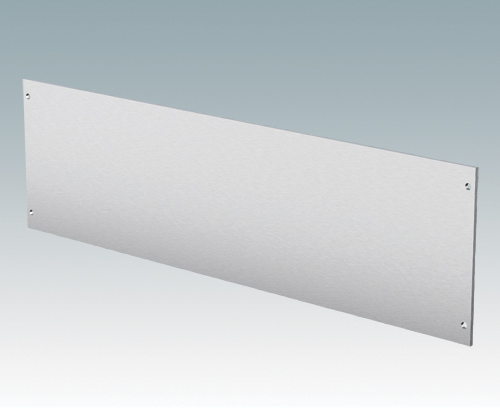

M6400705
Supply Front panel (fixings supplied with the cases).
M6400705
Front Panel 310Matt anodized
12.68″x0.08″x3.57″

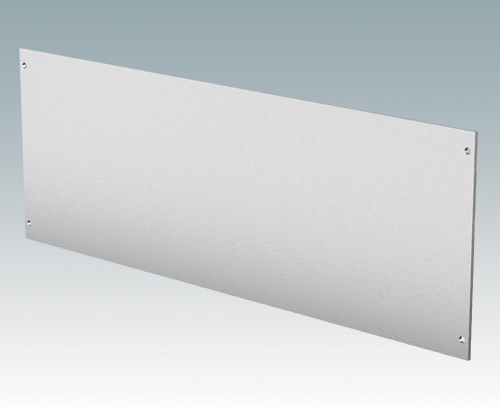

M6400706
Supply Front panel (fixings supplied with the cases).
M6400706
Front Panel 312Matt anodized
12.68″x0.08″x4.56″

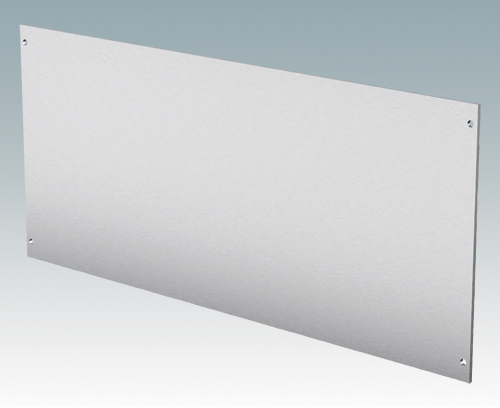

M6400707
Supply Front panel (fixings supplied with the cases).

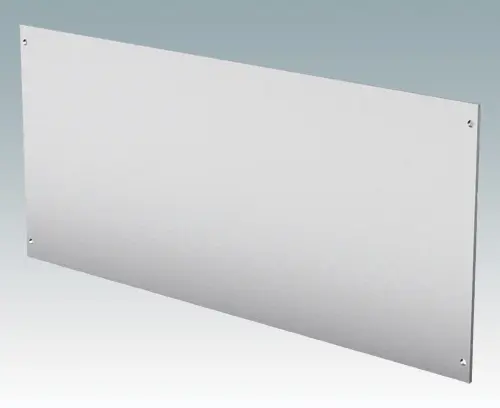

M6400707
Front Panel 315Matt anodized
12.68″x0.08″x5.54″

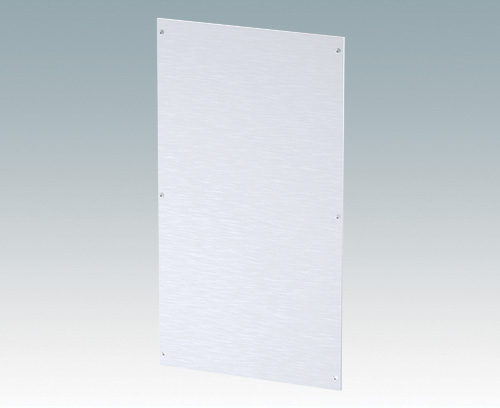

M6400712
Supply Front panel (fixings supplied with the cases).

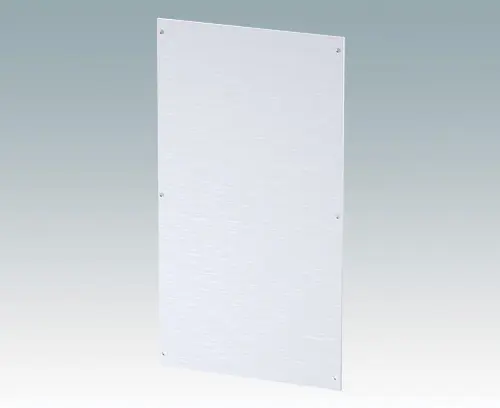

M6400712
Front Panel 124Matt anodized
5.83″x0.08″x10.66″
M6400715
Supply Front panel (fixings supplied with the cases).
M6400715

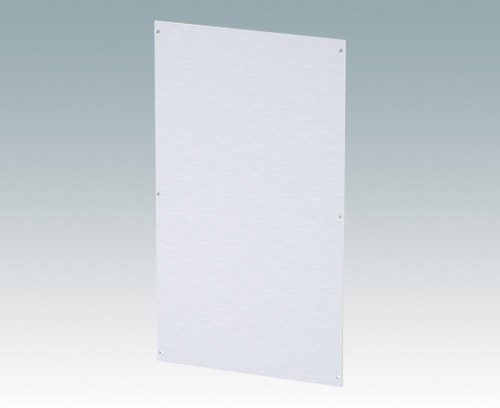

Front Panel 235Matt anodized
7.56″x0.08″x13.42″

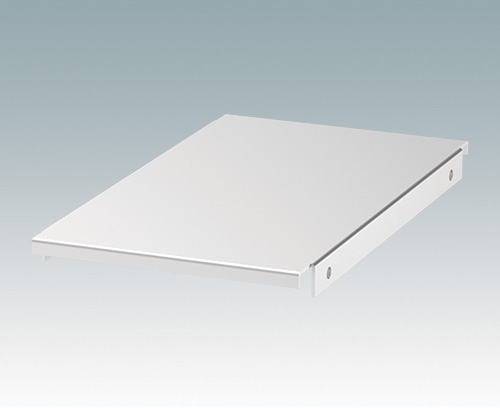

M6400812
Supply Shelf (1.5 mm natural aluminum), M4 x 12 (x4)

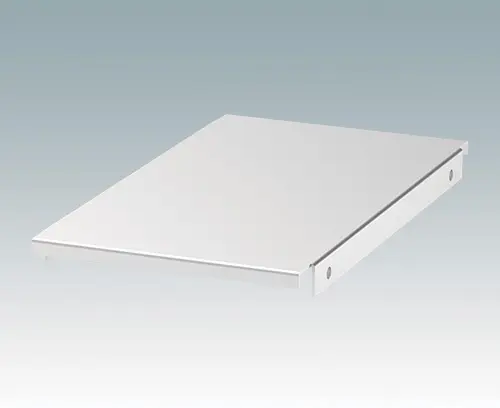

M6400812
Shelf Kit 124Natural finish
5.12″x0.59″x8.70″

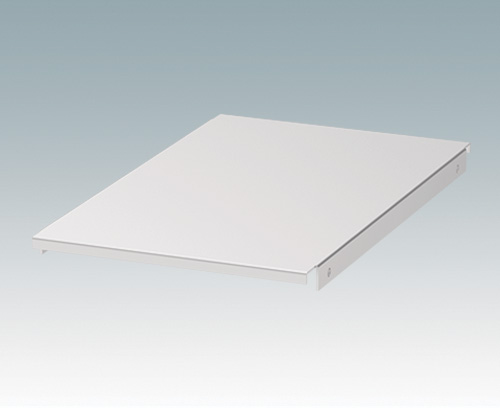

M6400815
Supply Shelf (1.5 mm natural aluminum), M4 x 12 (x4)

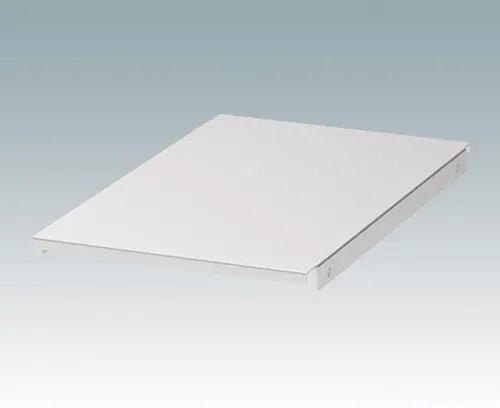

M6400815
Shelf Kit 235Natural finish
6.89″x0.59″x11.06″

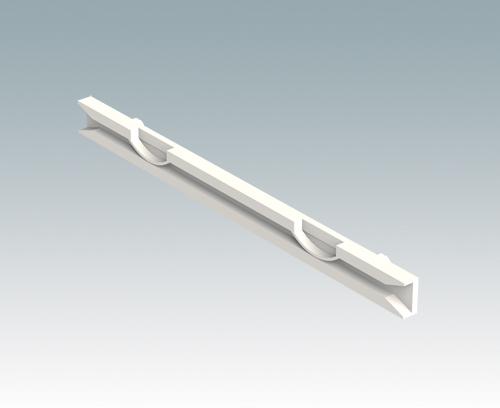

M6490010
| Technomet Model | Guides required per PCB | PCB positions in case |
|---|---|---|
| R210/R210H | 4 | 5 |
| R212/R212H | 4 | 7 |
| R215S/R215H | 4 | 9 |
| R310/R310H | 4 | 5 |
| R312/R312H | 4 | 7 |
| R215S/R215H | 4 | 9 |
Supply 1 PCB guide

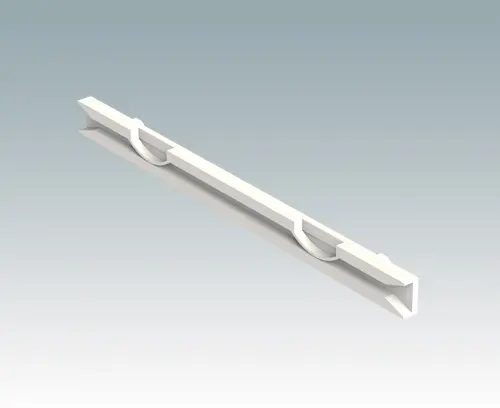

M6490010
PCB Guide, 4.00"Natural finish
4.00″x0.30″x0.14″

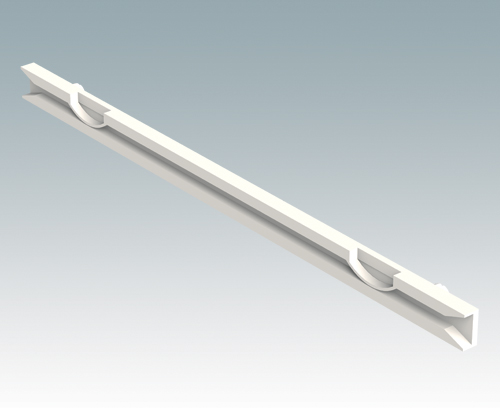

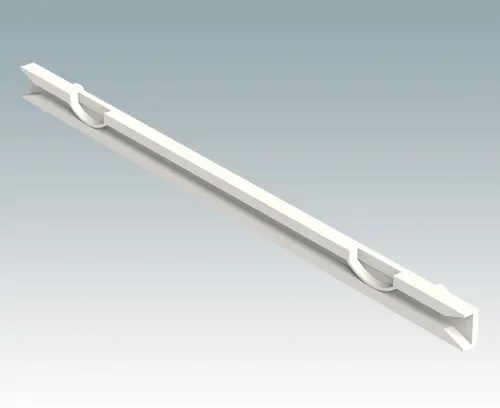

M6490020
| Technomet Model | Guides required per PCB | PCB positions in case |
|---|---|---|
| R107/R107H | 2 | 3 |
| R110/R110H | 2 | 5 |
| SL110 | 2 | 5 |
Supply 1 PCB guide
M6490020
PCB Guide, 5.50"Natural finish
5.50″x0.30″x0.14″
