19" Enclosures
M6417654
Technomet TX124S

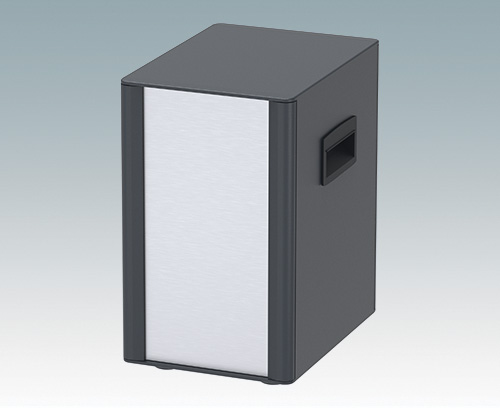

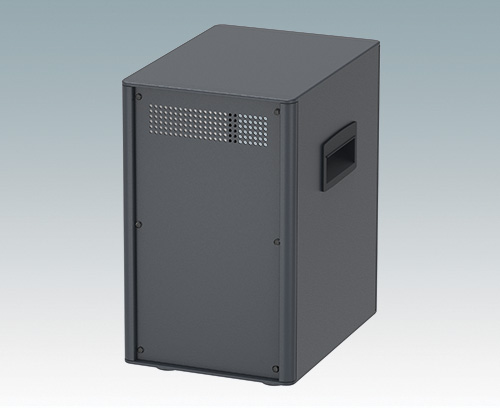

Highly attractive tower style aluminum enclosures for instrumentation. Space-saving footprint maximizes tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customized version.
VersionTower format
SupplyFront bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.
Generate Your PDF Datasheet for M6417654
Please select the product details you would like to include in the PDF.
Accessory
M6400712
Supply Front panel (fixings supplied with the cases).
M6400712
Front Panel 124Matt anodized
5.83″x0.08″x10.66″
M6400812
Supply Shelf (1.5 mm natural aluminum), M4 x 12 (x4)
M6400812
Shelf Kit 124Natural finish
5.12″x0.59″x8.70″
RoHS compliant
Catalog Pages
- TECHNOMET catalog (English) 4,005 KB
- Catálogo TECHNOMET (Español) 4,054 KB
Drawings
- PDF-File 354 KB
- M6417654.dwg.zip 752 KB
- M6417654.dxf.zip 675 KB
3D Models
- M641765X.sat 17,733 KB
- M641765X.stp 3,908 KB
- M641765X.x_t 3,387 KB
(METCASE product)
View our customizing options and don't forget to request a quotation!
