19" Enclosures
M5825105
Datamet S

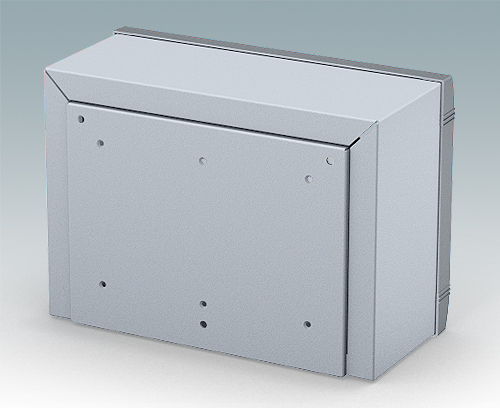

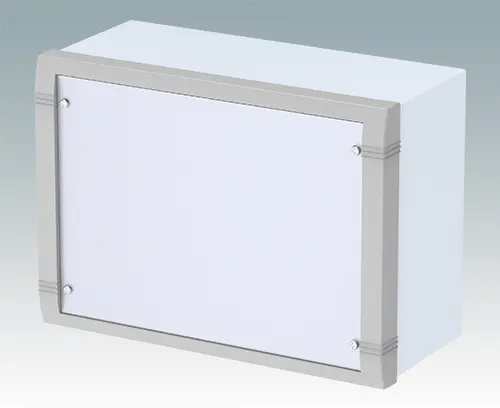

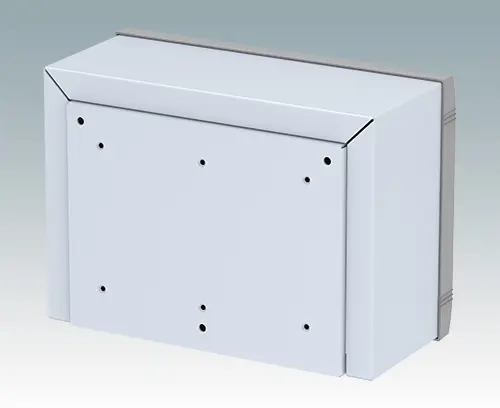

Modern aluminum wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear section. Order front panels separately.
SupplyFront bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
Generate Your PDF Datasheet for M5825105
Please select the product details you would like to include in the PDF.
Accessory
M5600001
If PCB or mounting plate fixing screws are required please see our screw kit M5600010.
Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.
M5600001
PCB mounting kitBlack RAL 9005
M5600010
Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET
Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.
Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.
Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).
M5600010
PCB Fixing Screws, M3Zinc coated
0.24″
M5800025
Supply Front panel (fixings supplied with the cases).
M5800025
Front panel SMatt anodized
8.66″x0.08″x6.28″
M5804125
Supply Mounting plate, 6 M3 polyamide pillars and 12 M3 fixing screws.
M5804125
Mounting plate kit SNatural finish
6.89″x4.72″x0.06″
RoHS compliant
Catalog Pages
- DATAMET catalog (English) 3,198 KB
- Catálogo DATAMET (Español) 3,261 KB
Drawings
- PDF-File 155 KB
- AutoCAD DWG-File 312 KB
- AutoCAD DXF-File 1,796 KB
3D Models
- M5825105.x_t 1,578 KB
- M5825105.sat 3,760 KB
- M5825105.stp 1,701 KB
3D PDF View (Open in Acrobat Reader)
- M5825105.pdf 1,248 KB
(METCASE product)
